Educational Products

11.6 inch Education YOGA

Model: Y116EP-G4S

Gemini lake N4000

1920*1080 (FHD) 16:10

7.4V/5200mAh

4GB LPDDR4 2400MHz

SATA 3.0 SSD 128GB/ HDD:500GB(optional)


Features

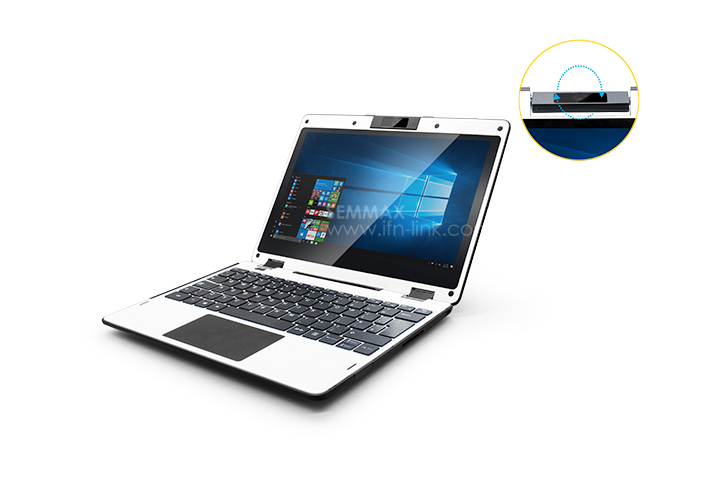

*Support rotate camera.

*Support 135° and 180° hinge

*IP4X

*IP52(on the faces A and B)

*75cm drop test

*FTPM

*CE, Rohs, FCC, CB, Energy Star certifications





Tech-Spec

11.6 inch Education YOGA

MODEL:Y116EP-G4S

PLATFORM/CPU:Gemini lake N4000

GPU:Intel® UHD Graphics 600

RAM:4GB LPDDR4 2400MHz

EMMC:32GB/64GB

SSD:SATA 3.0 SSD  128GB(Optional)

HDD:SATA  500GB(Optional)

BATTERY:7.4V/5200mAH

DISPLAY:11.6 inch 1920*1080 (FHD)  16:10

CAMERA:2MP USB (with LED) camera

SPEAKER:Built-in 8Ω/1W speaker x 2

Hall sensor:APX9132ATI-TRL(Optional)

Gsensor:KXCJ9-1008

TP:GT7385P   COF

WIFI+BT:AC/b/g/n, BT4.2  1x1  AC3165

4G:Optional

DIMENSION:292*211*25.0mm

WEIGHT:1446.5g

PEN:YES

FTPM:YES

IP52:IP52

DROP TEST:75cm drop test

Button:Power

HDMI:Standard HMDI

USB Interface:USB type-C    full function(Optional)

USB Interface:USB 3.0*2

HEADPHONE JACK:

∮3.5mm standard headphone jack

SIM/TF:Micro TF

DC:DC 3.5 mm

POWER ADAPTER:12V/2.0A  DC

Operating System:Win10 or Lunix

OPTIONAL:YES

MOQ:1000

STATUS:TBN

MASS PRODUCTION:YES
