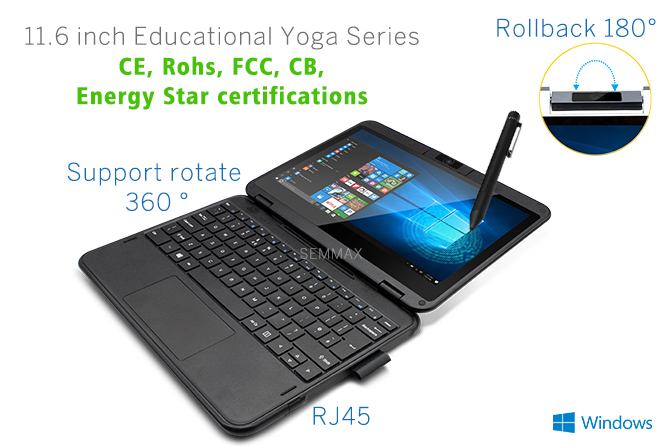

11.6 inch Education YOGA

Model: C116EP-G4S-02

Celeron N4100

4GB+128GB M.2 SSD
1366*768IPS 250 nits
12.0V/2A ,6500mAh
Front camera 2MP with rollback 180 degrees
Pass drop test MIL-STD-840G(100cm),IP54





Features

11.6 inch Education YOGA







Tech-Spec

11.6 inch Education YOGA

MODEL:C116EP-G4S-02
Type Information Descriptions
CPU Intel Gemini Lake ● Intel® SOC Celeron® Processor:N4000/N4100
   Intel® UHD Graphics600, Frequency up to 650//700MHz
 Intel® SOC Pentium® Processor:N5000
   Intel® UHD Graphics605, Frequency up to 750 MHz
Memory LPDDR4 ● LPDDR4 speed up to 2400MHz
● Support 4GB
● Support 8GBdual channel (Optional)
Storage EMMC ● Support 32GB/64G EMMC v5.1
● EMMC Controller
M.2 SSD(optional) ● Support 128GB/256GB
● 2280 SATA protocol
Audio Code Realtek
ALC256
● integrated audio
● 2.1 channels sound outputs support
● Cortana support on Windows 10
Card reader   ● Micro SD socket
LCD   ● 11.6”IPS 2.6mm 1366 x 768 ( w/1 Touch)
Battery   ● Polymer 2 cell 2S1P 5200mAh

39.52WH, 7.6V
● Polymer 2 cell 2S1P 6500mAh

 49.4WH, 7.6V (Optional)
● Battery charging cycles: 500 cycles, 80% design capacity (min)
Wifi & Bluetooth 1x1ac Combo (AC 9461) ● 802.11ac 1x1 (5GHz/2.4GHz dual band support)
● Bluetooth 5.0
● 1216 supported
2x2ac Combo(AC 9260) ● 802.11ac 2x2 (5GHz/2.4GHz dual band support)
● Bluetooth 5.0
● 1216 supported
Touch Pad   ● Click Pad with Left / Right Click
● HID I2C interface support precision touchpad
Camera   ● USB 2.0 interface
● 200W, w/1 flash LED, w/1 DMIC
● Camera support rollback 180 degrees
Speaker   ● Build-in 2 speakers
● Speaker: 1W x2
 8 ΩBox
BIOS   ● BIOS to AMI
● Support ACPI 5.0
OS    ● Windows 10 (64bit)
● WHLK LOGO
I/O Port    ● 1 x DC-in(3.5Ø)
● 2 x USB 3.0 port (Type A)
● 1 x USB Type C 3.0 port (only data or full function )
● 1x HDMI
Standard
● 1x Micro SD Card Reader
● 1XRJ45  (Optional)
● 1 x combo Audio jack for microphone/headphone
System Status
Indication
  ● Charge status (Blue/Red)

   Battery charge(incomplete): red light is long and bright

  Battery Charge ( FULL) : LED green Light

  Battery not ChargeLED is not bright
● The first lamp on the left side of C case is the switch indicator lamp
● The second lamp on the left side of the C case is the capitalization indicator.
● The third light on the left side of C case is capitalization indicator.
● LED Indicators: 4
Power Button   ● On/ Off: Programmable Power Buttons to Windows
● Press power button down for 1 second to enter suspend mode
● Press power button down for 5 seconds to power off system
● Fingerprint support (Optional)
Keyboard Function Key   ● Fn + Esc Homepage                     ● Fn + F1 Find
● Fn + F2
  All election                       ● Fn + F3 Copy
● Fn + F4
  Paste                               ● Fn + F5 Cut
● Fn + F6
  Last song                        ● Fn + F7 Suspend
● Fn + F8
  Next song                        ● Fn + F9 Mute
● Fn + F10
 Volume Down                 ● Fn + F11Volume Up
● Fn + F12
Function lock                   ● Fn + F11Numeric keylock
Keyboard   ● Integrated QWERTY keyboard W/ Hot key
● Multi-languages Supported
● Chocolate US & UK
AC-Adapter   ● DC 3.5Ø
● 12V2A
● Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 24Watts
TPM   TPM2.0
Sensor   ● Micropower operation
● Operation with magnetic field of either north or south pole (omnipolar)
● Hall Sensor:APX9132ATI-TRL
● Gsensor
KCJX1008
Language   ● Chinese                    ● English
● Spanish                    ● Portuguese
● French                      ● German
● Russian                    ● Arabic
● Brazil Portuguese     ● Latin Spanish
● Italian                         ● Hungarian
● Turkish
Measurements   ● Dimension:  294x213x22 mm
● Weight:  1300g
Battery Life   ● Battery Charger time4hrs (Power off)
● Battery Life(Battery:5200mAh): 8 hours with Tablet Mark 2017

 Base on 6W (TDP) CPU, 11.6” LCD and default brightness40%,Wi-Fi on, and camera disabled
Certification EMC ● CE
● FCC
RF ● FCC
Safety&
Environment
● CB
● ROHS
Validation   ● Drop test MIL-STD-810G (100cm)
● Water Resistance 500cc on keyboard/touchpad
● IP54
● high and low temperature
● vibration
● Energy Star (Design ready)
