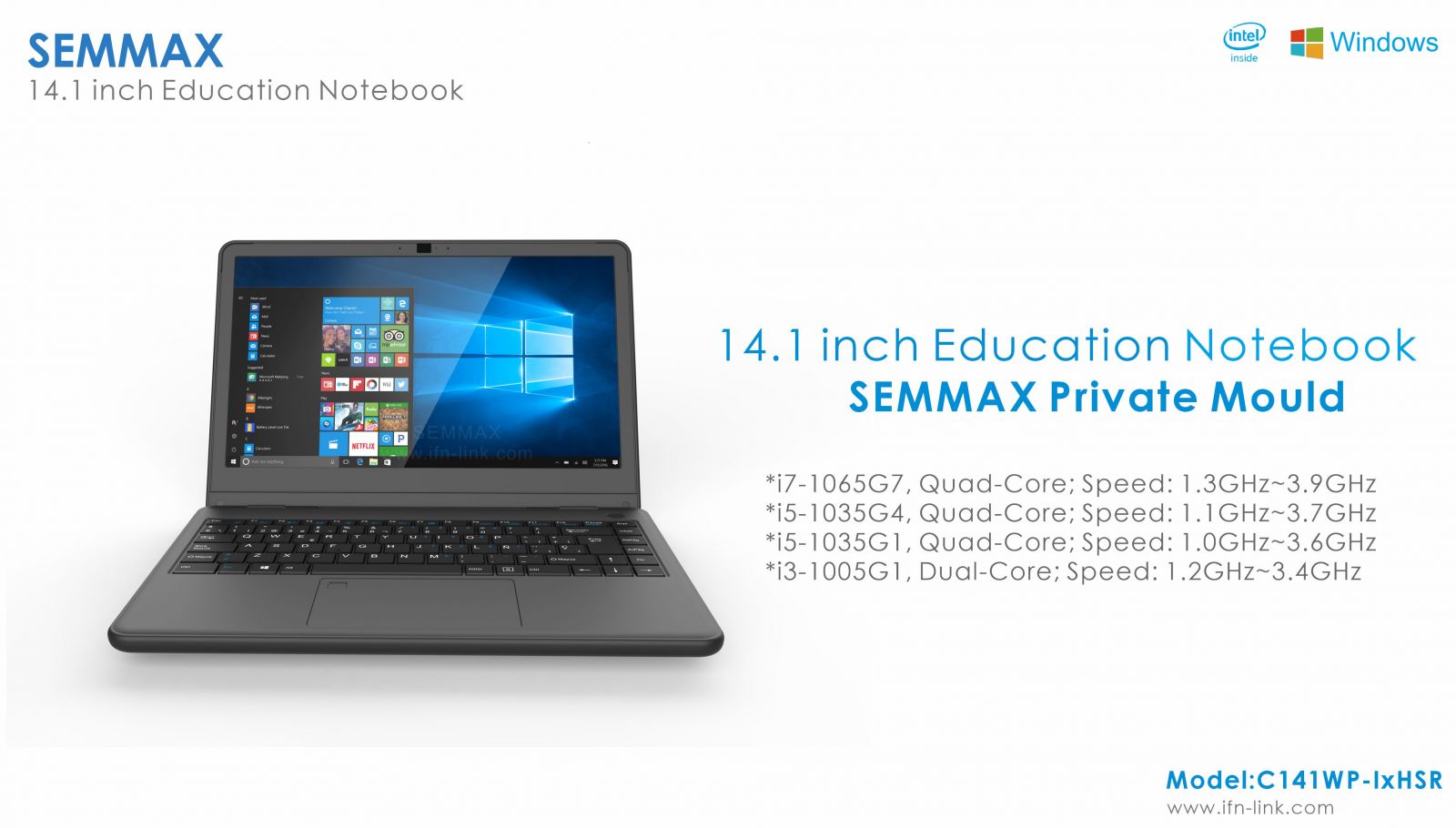

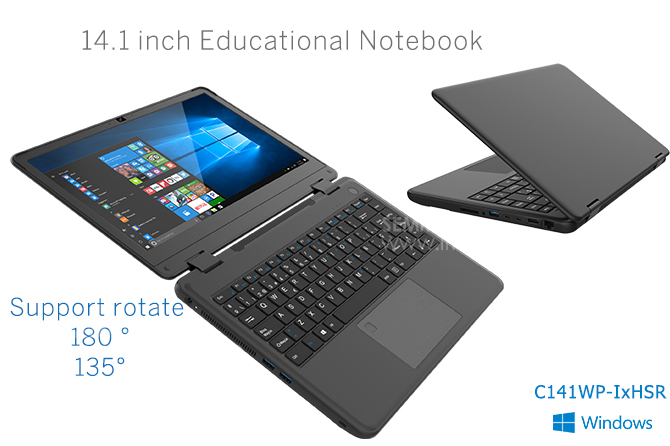

14.1 inch Education Notebook

Model: C141WP-IxHSR

C141WP-IxHSR-Notebook

i7-1065G7, Quad-Core; Speed: 1.3GHz~3.9GHz

i5-1035G4, Quad-Core; Speed: 1.1GHz~3.7GHz

i5-1035G1, Quad-Core; Speed: 1.0GHz~3.6GHz

i3-1005G1, Dual-Core; Speed: 1.2GHz~3.4GHz

14.1 inch IPS 1920 x 1080

Support 32GB / 64GB /128GB eMMC




Features

14.1 inch Education Notebook

C141WP-IxHSR



Tech-Spec

Type

Information

Descriptions

SOC

Intel Ice Lake

i7-1065G7, Quad-Core; Speed: 1.3GHz~3.9GHz

i5-1035G4, Quad-Core; Speed: 1.1GHz~3.7GHz

i5-1035G1, Quad-Core; Speed: 1.0GHz~3.6GHz

i3-1005G1, Dual-Core; Speed: 1.2GHz~3.4GHz

Memory

Sodimm* 2



Sodimm DDR4 Speed

Support 4GB-32GB

Storage

SSD
<Optional>

Support  SSD 128-512GB

Support SATA or PCIE (M.2 2280)

HDD
<Optional>

Support  HDD 512-1TB

Ø Support SATA 2.5inch

Audio Codec

Realtek

ALC269Q-VX3-GR

Azalia integrated audio

2.1 channels sound outputs support

Cortana support on Windows 10

Digital MIC array

LAN Controller

<Optional>

Realtek

RTL8111HS-CG

Supports 10/100/1000 Mb/Sec

KBC

ITE

IT8987E/BX

ACPI 2.0b compliant

SD Card reader

Realtek

RTS5170-GR

SD, SDXC, SDHC

USB2.0 interface

Hall Sensor

WH251E-3/TR



Micropower operation

Operation with magnetic field of either north or south pole

Chopper stabilized

Superior temperature stability

LCD

14.1 IPS

14.1” IPS 1920 x 1080

Brightness 250nitscontrastratio800(typ)

eDP interface

Keyboard



Integrated QWERTY keyboard w/ Hot key

83 UK KEY K/B

Multi-languages Supported

Physical Chocolate KB

Pointing Device

HIDI2C

Click Pad with Left / Right Click and scrolling Bar.

I2C interface

Support Windows Precision Touchpad (PTP)

Wireless LAN /  Bluetooth

1x1ac Combo

AC9461

802.11ac 1x1 (5GHz/2.4GHz dual band support)

Bluetooth 5.1

M.2 2230 supported

2x2ac Combo

AC9560

<Optional>

802.11ac, 2x2 (5GHz/2.4GHz dual band support)

Bluetooth 5.1

M.2 2230 supported

ALS

(Ambient Light-Sensor)

<Optional>

Capella

CM32181A3OP

LCD backlight luminance auto adjustment

Standard SM Bus protocol interface

LTE
<Optional>

Fibocom

L830-EB-01

LTE FDD: Band 1,3,7,8,20,28,

WCDMA/HSPA+: Band I, V, VIII

M.2 Key-B, 30 x 42 x 2.3mm

USB 2.0 interface

Data Service Up to 300Mbps DL/50Mbps UL

Supports AGPS

Battery



Polymer 3 cell 3S1P 5000mAh

Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable, 3s1p/11.4V/5000mAh/57Wh.( Support HDD)

Polymer 3 cell 3S1P 7000mAh

Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable, 3s1p/11.4V/80Wh.( NO HDD)

Adapter

65W

DC Output: 19V/3.42A

DC in plug

Automatics Voltage adjustment between 100 and 240VAC

Input Frequency 50/60Hz

Surge protection

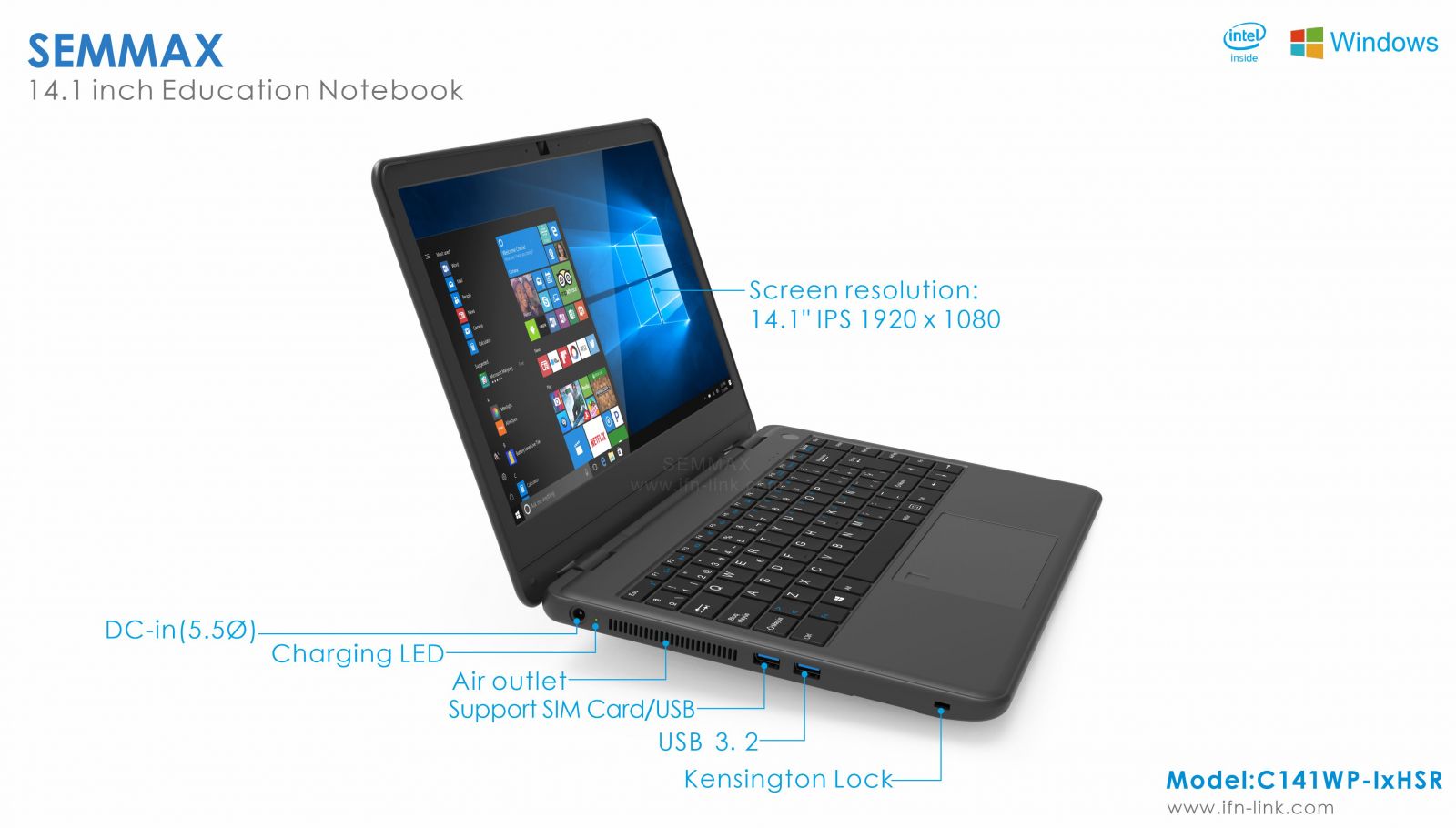

I/O Port

1 x DC-in(5.5Ø)

2 x USB 3.2 Gen1 Type-A

2 x USB 3.2 Gen2 Type-C (USB3.2, Data/PD/DP)

1 x combo audio jack for headphone/microphone

1 x HDMI Type-A 2.0

1 x SD 2.0 card reader

1 x Micro SIM slot <Optional>

1 x RJ45 <Optional>

System Status

Indication

When power on: White LED always on, caps lock White LEDdigital White LED

Power charging indicator LED (Full: Green / Charging: Red)

Low battery (<20%): Red, blink every one second.

LAN Link:10M Off / 100M Green / 1000M Orange / Act: Green

Power Button

On/ Off: Programmable Power Buttons to Windows

Press power button down for 1 second to enter suspend mode

Press power button down for 4 seconds to power off system

Speaker

Build-in 2 stereo speakers

Speaker: 2W , 4Ω

Microphone

Default: 2 digital mic (One in Camera)

Support Windows 10 Cortana compliance.

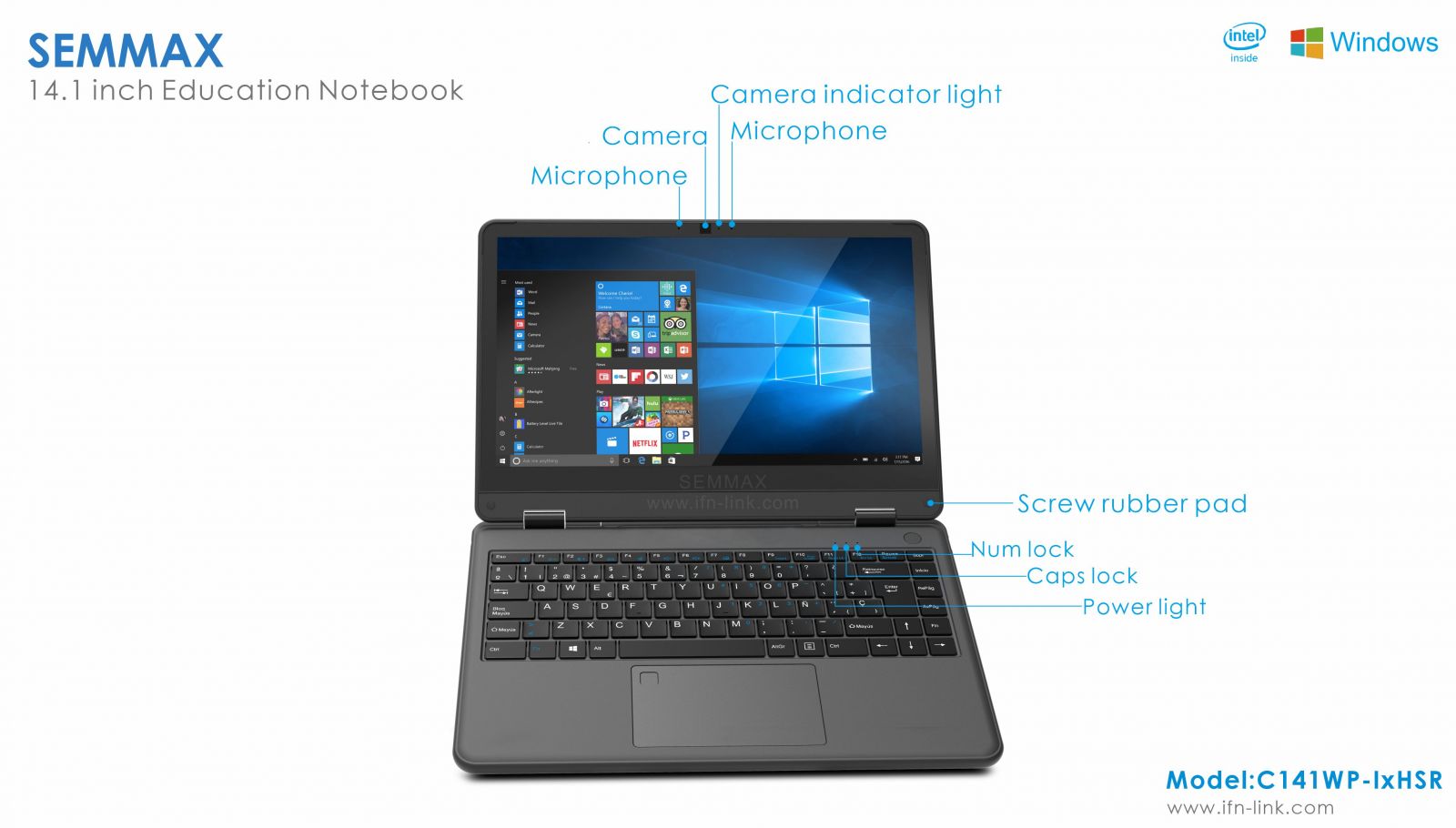

Camera

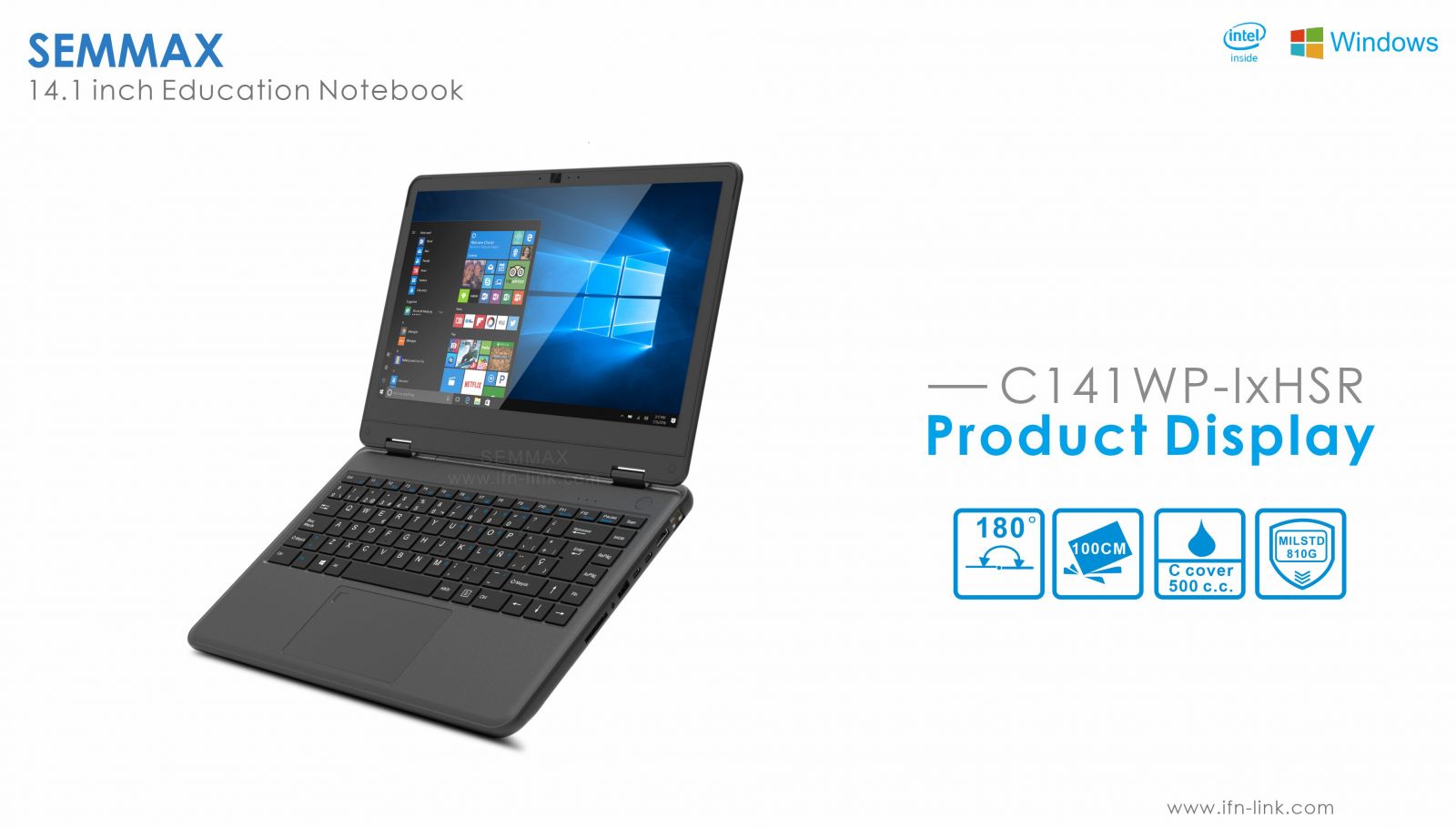

(Rotatable)

Front Camera2M FF W/Blue LED

With D-MIC*2

USB 2.0 interface

Resolution support 2M(4:3 format)still image and HD 720P(1280x720169) motion image

OS

Windows 10 (64bit)

WHLK LOGO

System BIOS

AMI

Support ACPI 5.0

Support external USB flash memory card boot up.

Function Key

F1 – Mute

F2 – Volume down

F3 – Volume Up

F4 –Switch display device

F5 –Brightness down

F6 –Brightness up

F7 – Setting

F8 – Play/Pause Media

F9 – Cortana

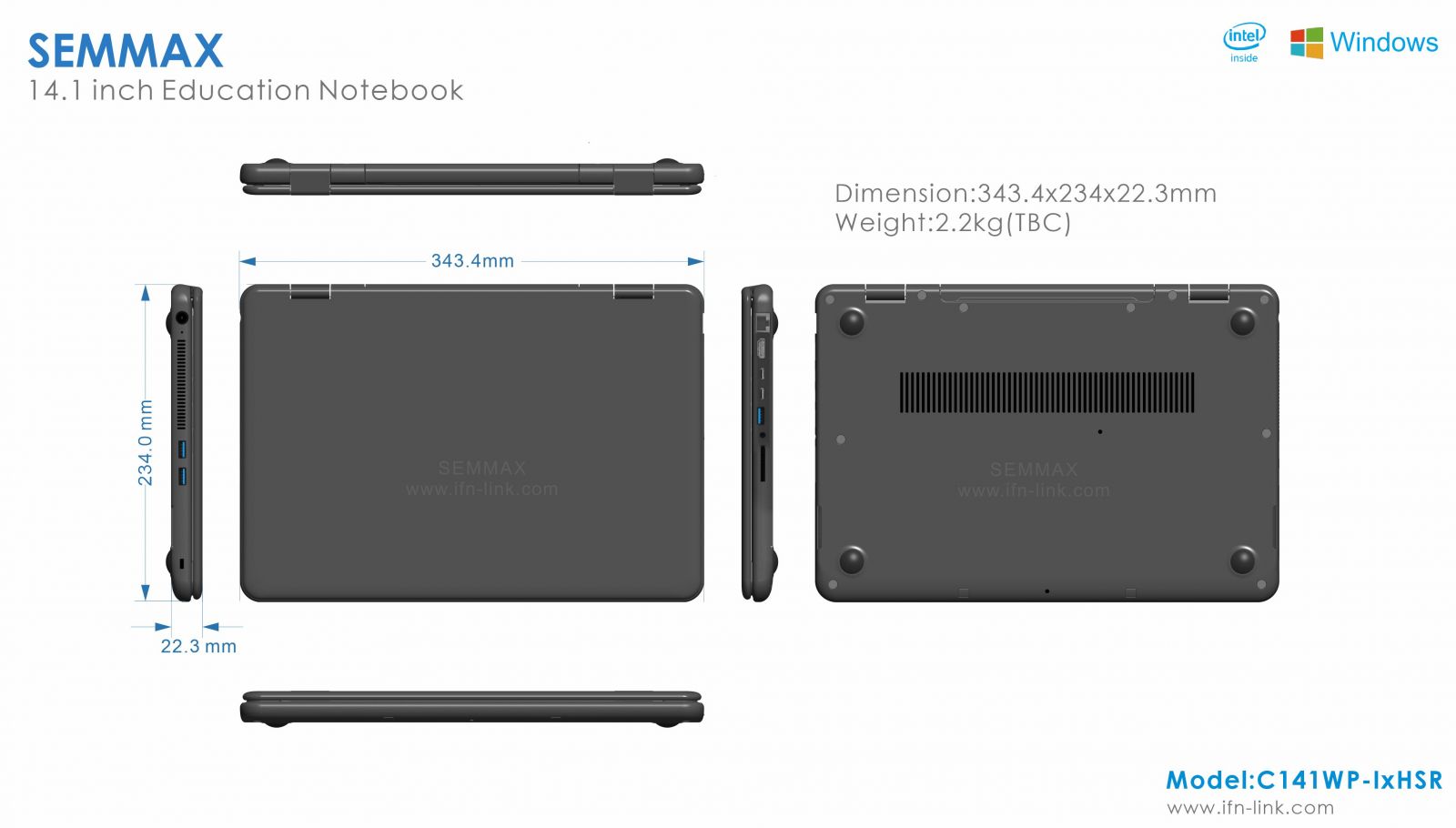

Measurements

Dimension:343.4*234*22.3mm

Weight:2.2kg (TBC)

Battery Life

Battery Life : 8-12 hour with Tablet Mark 2017 (With SSD SKU)(TBC)

***Base on 14.1” LCD and defined brightness, Wi-Fi on, and camera disabled. Actual battery life may vary based on product settings, usage patterns and environmental conditions.

Certification

EMC

FCC/CE

RF

CE (Wifi only for EuropeLTE by request)

FCC(LTE by request)

Safety&

Environment

CB

UL (by request)

WEEE(Declaration)

RoHS (Declaration)

Design Ready

Energy Star Compliance 8.0

Erp 6

CEC

Validation

dTPM2.0

SLB 9670

<Optional>

Meeting IntelTXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification

SPI interface

Validation

Water repellent on 500CC cover , including Keyboard and touch pad

Dropping 100cm, MIL-STS-810G

Fingerprint

<Optional>

Touch pad

SPI interface

Windows Hello supported

iKES
<Optional>

Education Software (not support in Win10 S mode)
