Retail Tablet Android 5.1 For Commercial Use Up To 43-inch

Model: T101/1400/1560/1850/2150/2400/2700/3200/4300

Our android commercial tablets are never like consumer tablets. The use of tablets in a commercial environment requires many hours of continuous operation, robust materials, even power over ethernet for easy installation and much more. We developed our products to perfectly suit this demanding environment:

  • available in 10.1", 11.6", 13.3", 14", 15.6", 18.5", 21.5", 24", 27", 32", 43" to suit different display size and resolution requirements;

  • timeless and consumer-friendly design, highly customized hardware and software for 24/7 commerical use, anti-theft card locker, various mounting fixtures, root access, password security, hidden status bar etc;

  • 802.3at PoE (Power over Ethernet) optional, delivering power with data in one cable, available in 10.1", 11.6", 15.6", 18.5" and 21.5";

  • proprietary touch screen content author let customers design content layout as easy as make a PPT;

  • main components for after-sale service available for at least 5 years.








Features

Our Android tablets are designed to address retail and commercial sector applications unmatched by consumer tablets – robust, highly reliable at unbeatable wide range of sizes. Despite the consumer friendly design which should be firstly taken into account, we have and now still doing everything we can to make the device perfectly meet all your expectations: much stable performance at competitive prices, faster delivery time with more satisfactory services etc.


Main Features:


1. IPS Screen For Brighter and Sharper Display, Available in 10.1", 13.3", 14", 15.6" and 21.5"


For most regular sizes like 10.1", 13.3", 14", 15.6", 21.5" commercial tablet display, we adopt IPS panel to differientiate from other common products in market, as IPS LCD panel is recognized higher-end display with much more vivid color performance & full viewing angle to attract more traffic.

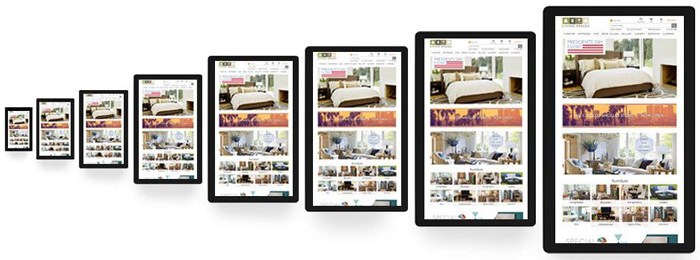

retail tablet android in varied sizes

android retail tablet for commercial display 14inch/15.6inch/18.5inch/21.5inch/24inch /27 inch /32 inch /43 inch

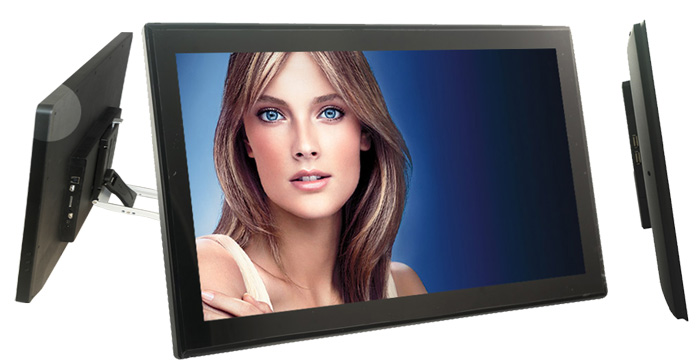

Two Design Profiles For Retail Tablets

commercial grade android retail tablet with two design profiles

2. In-house Hardware and Software Design


We listened to customers' requirements about the hardware and software solutions and continuously optimized the whole product line, from security stand to multitude of mounting fixtures, from power on plug-and-play to various interfaces for easy integration with POS peripherals like RFID reader, thermal printer etc, we have one-stop solution for your project.


3. Optional 802.3at PoE (Power over Ethernet) Delivering Power and Data In One Cable



802.3at is universal standard providing up to 25.5W of power per port, ensuring stable performance of the display units, available in 10.1", 11.6", 15.6", 18.5" and 21.5".


4. Proprietary Touchscreen Content Author to Design Your Own Presentation Layout Like Making a PPT



Most marketers don't want to disclose their promotion informations to third parties while most hardware companies can't provide suitable software solutions. Taking those into consideration, we designed our own interactive touchscreen profiler to encourage customers' own creation of presentation layouts, which is as easy as make a PPT.

Tech-Spec



Specifications:
CPU Quadcore Cortex-A9 1.6GHz 14", 15.6", 18.5", 21.5", 24", 27", 32",43"
Qcta-Core Cortex-A17 1.8GHz 14", 15.6", 18.5", 21.5", 24", 27", 32
Internal Memory 8GB 14", 15.6", 18.5", 21.5", 24", 27", 32",43"
8GB/16GB/32GB 14", 15.6", 18.5", 21.5", 24", 27", 32
Operating System Android 4.4 Kitkat / Android 5.1 14", 15.6", 18.5", 21.5", 24", 27", 32",43"
RAM 1GB 14", 15.6", 18.5", 21.5", 24", 27", 32",43"
2GB 14", 15.6", 18.5", 21.5", 24", 27", 32",43"
Warranty & Service Warranty 2 Years
RMA  Parts Availability 5 Years

Network, Interface & Media Format Support:
WiFi 802.11 b/g/n Interface Supported Media
3G USB Dongle ext SD, Support Up To 32GB Video: MPEG-1, MPEG-2, MPEG-4,
10M/ 100M Ethernet USB OTG  H.264, VC1, RV, Up to 1080P
Bluetooth 3.0 ( 14", 15.6", 18.5", 21.5") USB HOST x3 Audio: MP3/MWA/AAC
Bluetooth 4.0 ( 24", 27", 32", 43") DV Power Input IMAGE:JPEG/BMP/PNG
  RJ45
  3.5mm Headphone
  HDMI in (optional for 24", 27", 32", 43")


Others
Speaker 2X2W 14", 15.6", 18.5"
2X3W  21.5", 24", 27", 32",43"
Camera 2.0MP, Frontal 14", 15.6", 18.5", 21.5"
5.0MP, Frontal, AF 24", 27", 32",43"

LCD Panel & Mechanical
Model No. T1400 T1560 T1850 T2150 T2400 T2700 T3200 T4300
Screen Size 14" IPS 15.6" IPS 18.5" 21.5" IPS 24" 27" 32" 43"
Resolution 1920x1080 1920x1080 1366x768 1920x1080 1920x1080 1920x1080 1920x1080 1920x1080
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9 16:9 16:9
Brightness CD/m2 300 300 300 300 300 300 300 300
Contract Ratio 700:1 700:1 1000:1 1000:1 1000:1 1000:1 3000:1 3000:01:00
Viewing Angle H/V 178/178 178/178 170/160 178/178 178/178 178/178 178/178 178/178
Touchscreen 10-point capacitive touch ( optional without touch )
Mounting 75mm vesa 75mm vesa 75mm vesa 100mm vesa 100 mm vesa 100mm vesa 100mm vesa 100mm vesa
Housing ABS Plastic
          Metallic
AC Adapter 12V / 3A 12V /5A
POE Option
Dimension 355x228x32.6mm 404x253x33.5mm 468x288x37.5mm 538x331x37.5 mm 595.5x363.1x43.6mm 663.73x400x41.1mm 763.77x457.21x47.02mm TBA
Weight/ Unit kgs 1.00  1.20  3.00  3.50  4.80  5.30  7.60  TBA
Unit Packing 390x330x80mm 430x360x85mm 528x110x395mm 600x120x425mm 670x480x125mm  740x520x150mm 880x580x150mm TBA
Quantity / Carton 5 7 3 4 2 1 1 TBA
Carton Size 430x410x370mm 620x440x375mm  54x35.5x41cm  61.2x51x44cm 740x560x2500mm  740x520x150mm 880x580x150mm TBA
