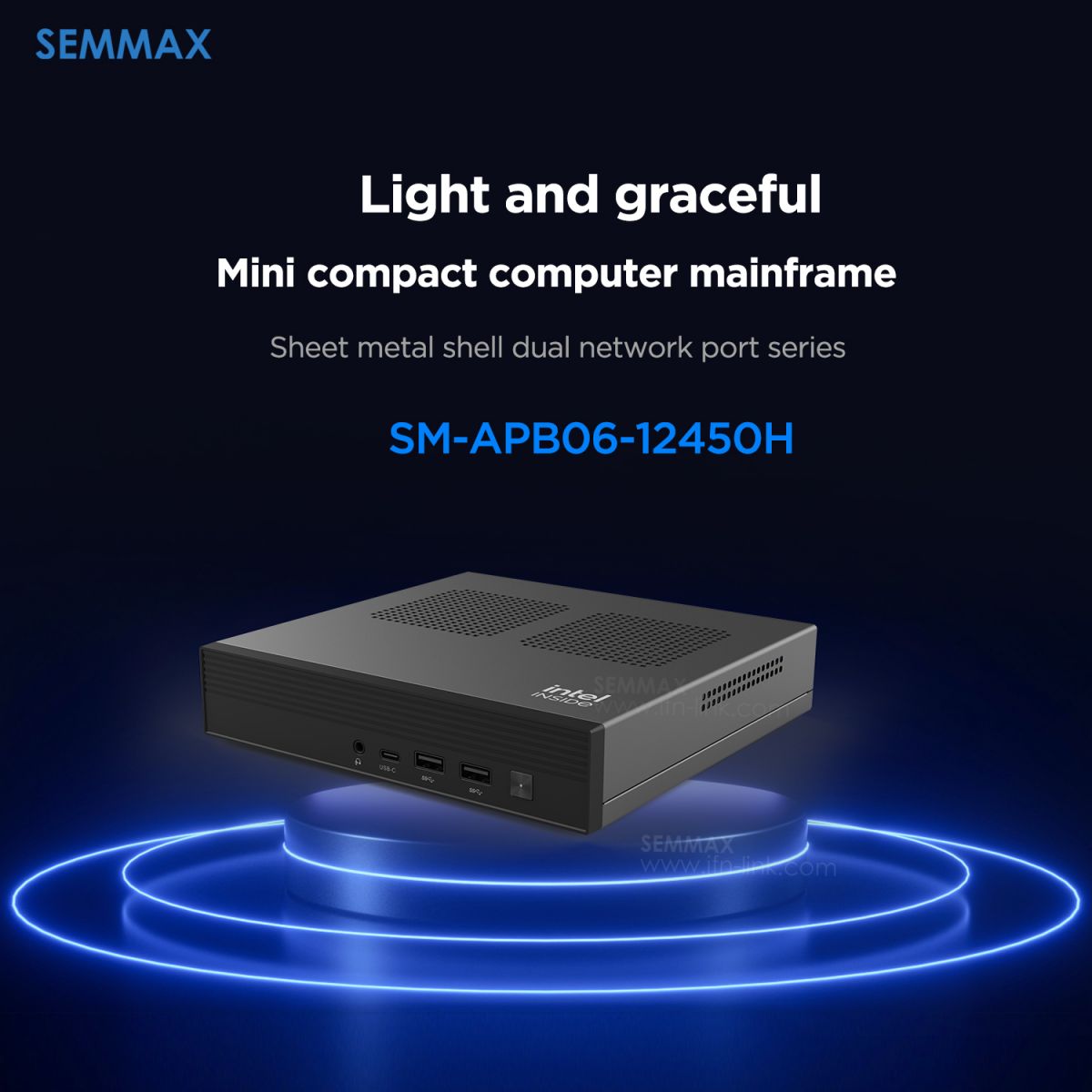

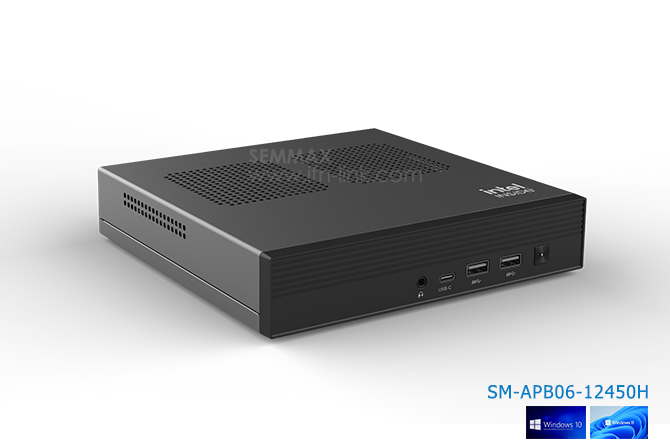

MiniPC|8 core 12 threads | metal shell |Intel Ader Lake i5-12450H up to 4.40GHz
Model: SM-APB06-12450H
CPU:Intel Ader Lake i5-12450H optional
GPU:Intel® UHD Graphics up to 1.20 GHz
RAM:DDR4 , up to 64GB 8G/16G/32G optional
Storage:M.2 SSD 2280 PCIe X4 NVMe /SATA3
2.5` HDD SATA3
Ethernet:i225, RJ45 port, 2.5GbE
Wi-Fi:C9852BE 2.4G/5G,WiFi6 802.11ac/a/b/g/n/ax
Bluetooth:C9852BE/BT5.2
Adapter:∮5.5*2.5 DC IN, 19V/5A
Features
Tech-Spec
| Hardware Configuration | |||
| Items | Details | Descriptions | Comments |
| Product Form | Form | SM-APB06-12450H | |
| CPU | Type | Intel Ader Lake i5-12450H up to 4.40GHz | i5-12650H optional |
| PU | Integrated | Intel® UHD Graphics up to 1.20 GHz | |

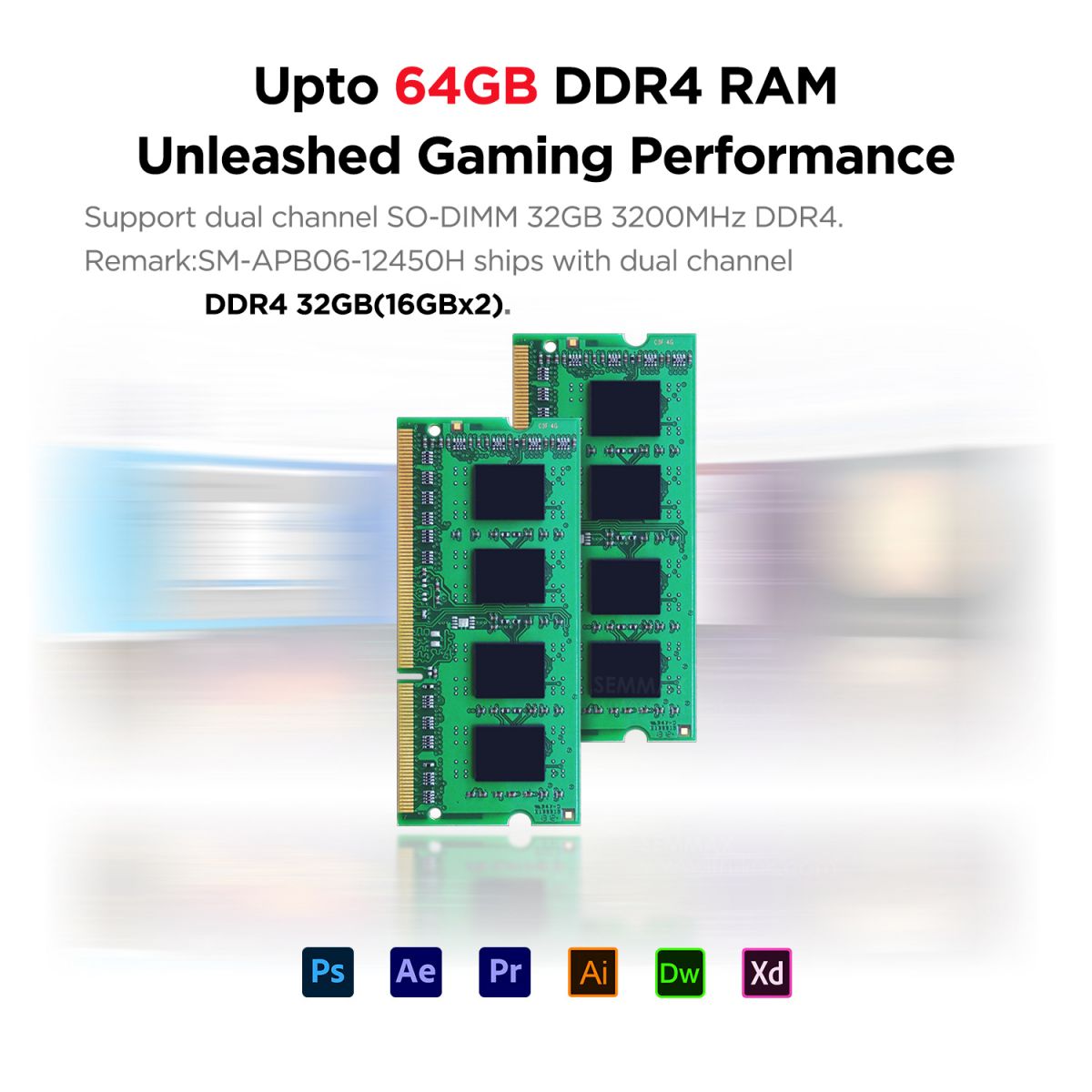

| RAM | SO-DIMM*2 | DDR4 , up to 64GB | 8G/16G/32G optionaldual channel |

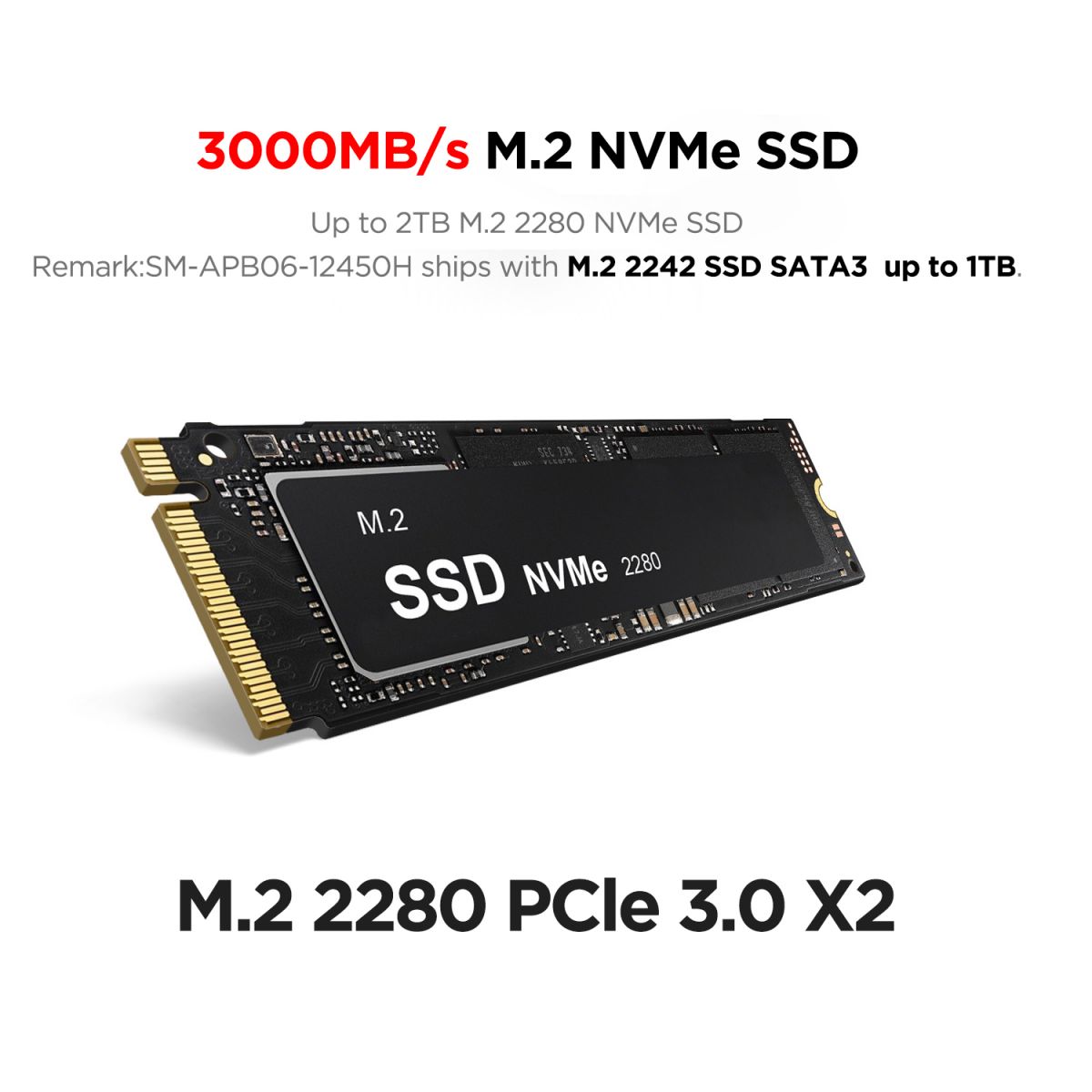

| Storage | M.2 SSD | 2280 PCIe X4 NVMe /SATA3 | |
| 2.5` HDD | SATA3 | ||
| Ethernet | Built-in | i225, RJ45 port, 2.5GbE | |

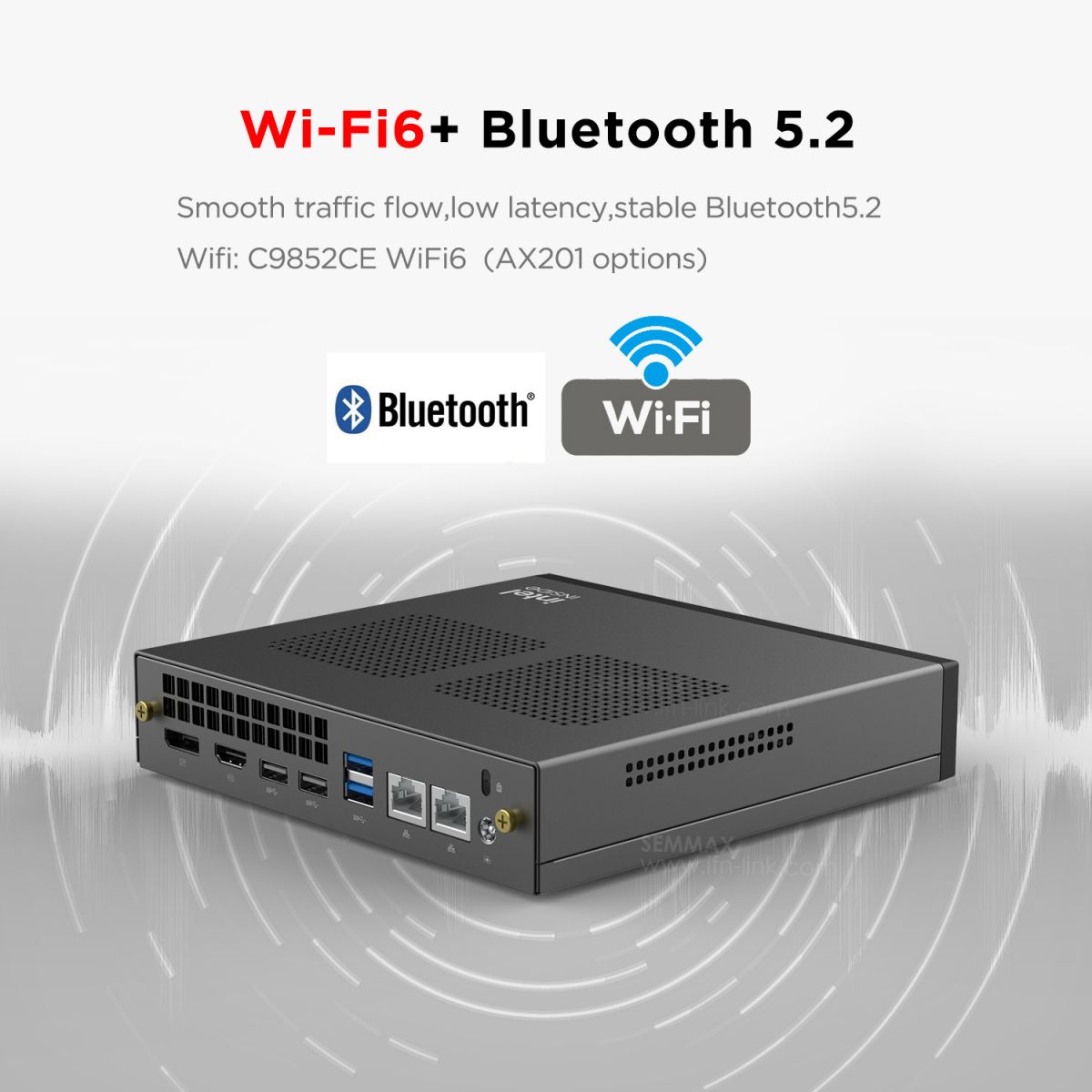

| Wi-Fi | Built-in | C9852BE 2.4G/5G,WiFi6 802.11ac/a/b/g/n/ax | |
| Bluetooth | C9852BE/BT5.2 | ||

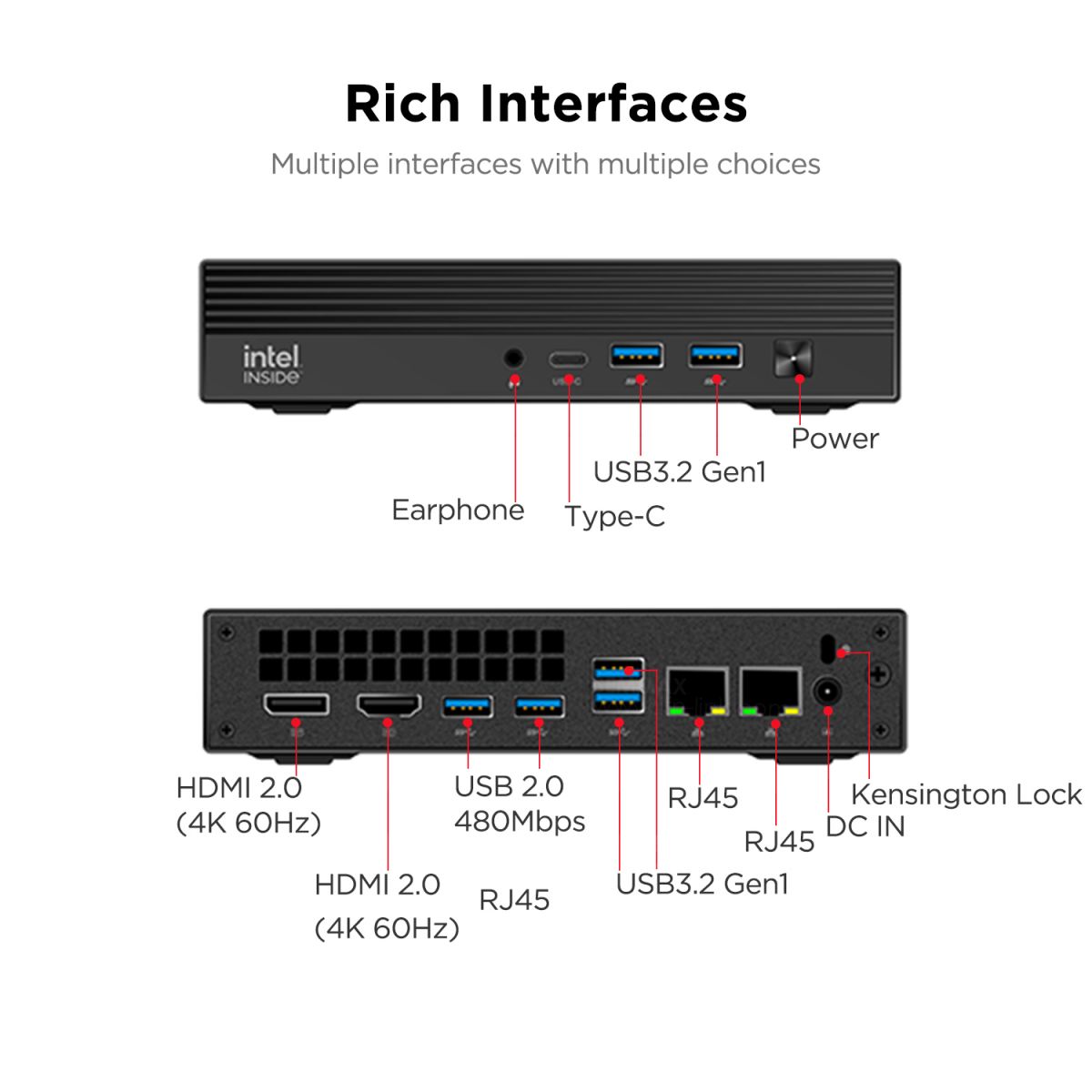

| Ports | |||
| Items | Details | Descriptions | Comments |
| LED indicator | Power/Lan/ | Power(white)/Lan(Green/Orange) | |
| Button | Physical buttons | Power button | |
| USB Port | Data transmit | USB3.2 TYPE-A *4 USB2.0 TYPE-A *2 | |
| Type-C | Fully functional | Type-C (DP/DATA)*1 | |
| Ethernet | Built-in | RJ45 port*2 | |
| Fan | Smart Fan | Support | |
| Earphone Jack | Audio output | ∮3.5mm,CTIA | |
| HDMI | HD Video output | HDMI v2.0*2 | |
| DP | DisplayPort | DP1.4*1 | |
| Adapter | Power input | DC IN, 19V/ 5A | |
| System | |||
| Items | Details | Descriptions | Comments |

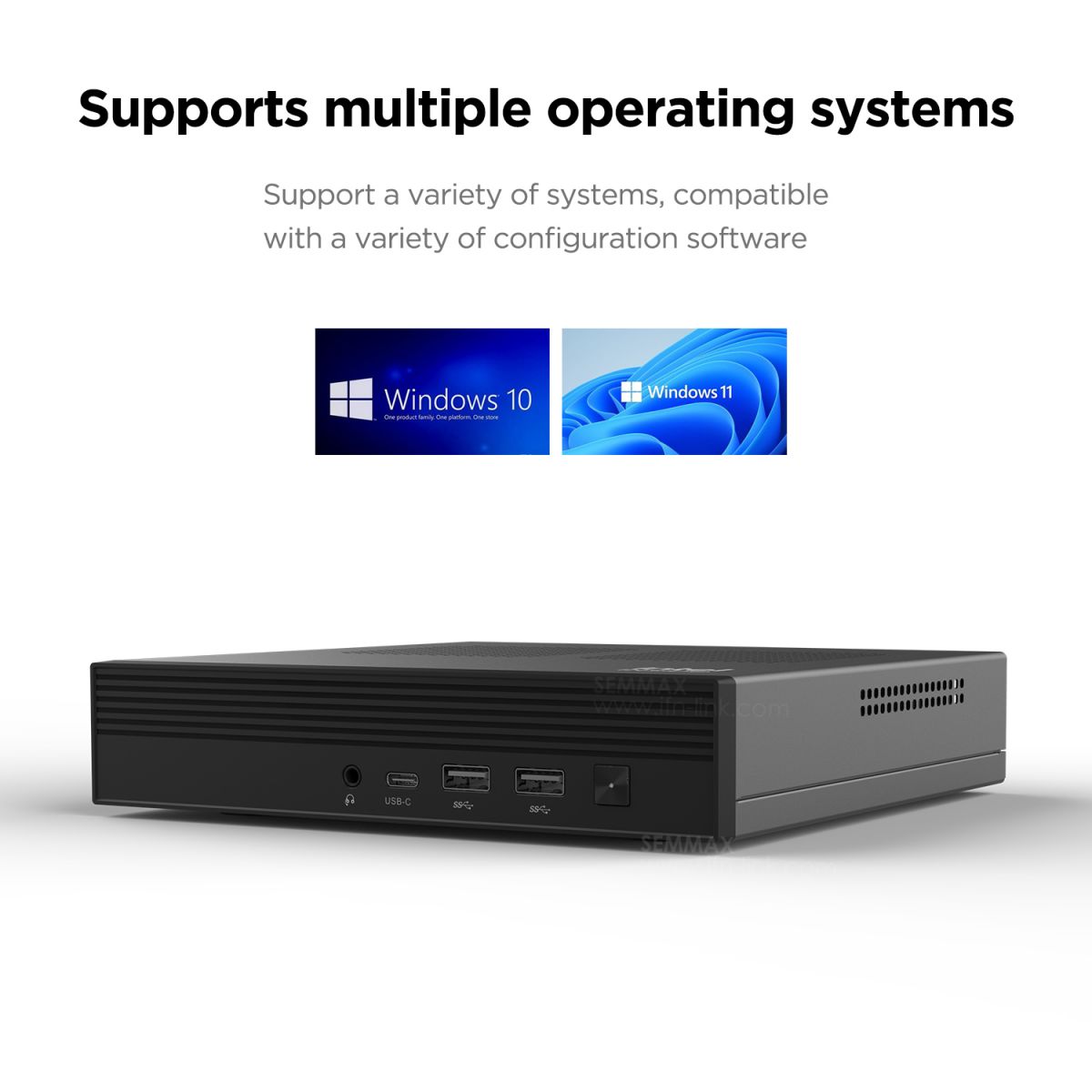

| OS | Windows 10 /Windows 11 / | ||
| Language | multi-language | ||
