Spreadtrum |10.1

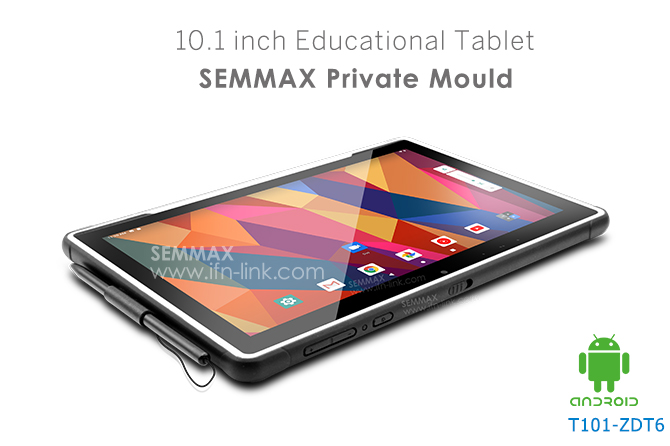

PROGRAM CODE: T101-ZDT6

SOC

Spreadtrum

n   CPU：MT8788  Oct-Core; Speed:2.0 GHz

n   CPU：MT8183  Oct-Core; Speed:2.0 GHz

Memory

DDR4

n   LPDDR4

n   Support 2、3、4GB

Storage

eMMC

n   Support 32GB；64GB

n   EMMC v5.1

Audio Codec

AW8737

n   integrated audio

n   2.1 channels sound outputs support

 Card reader

n   Micro SD socket

LCD

10.1 IPS

n   10.1” IPS 800 x 1280

n   Brightness 250nits，

n   Mipi interface

Touch Controller

GLS3670

n   Mutual Capacitive Sensing Techniques

n   UP to 10 finger detection and simultaneous tracking

n   Sensor size up to 10 inch diagonal

Touch screen

G+FF

n   Support 10-points multi-touch, G+FF type

n   Capacitive multi-touch

n   Support Passive pen

Passive pen

n   Support Tip 3mm

Wireless LAN /  Bluetooth

ac Combo

UMW2652

n   802.11ac 1x1 (5GHz/2.4GHz dual band support)

n   Bluetooth 5.0

GPS

Yes

n   UMW2652

n   GPS+GLONASS；GPS+BD；GPS；

FM

Yes

n   UMW2652

n   65MHz to 108MHz

Accelerometer

(G-sensor)

STK8BA50-S

n   Accelerometer and gyroscope combine

n   Display profile switching (portrait/landscape, face-up/face-down switching)

n   Flat detection

Accelerometer

Gyroscope

LSM6DSL

n   Accelerometer and gyroscope combine

n   Display profile switching (portrait/landscape, face-up/face-down switching)

n   Flat detection

ALS

(Ambient Light-Sensor)

STK3311K

n   LCD backlight luminance auto adjustment

n   Standard SM Bus protocol interface

n   Distance sensing

e-Compass

AK09918C

n   Geomagnetic combination

n   Compensated compass

n   Map rotation

LTE
<Optional>

n

Battery

n  Polymer 2S1P 8000mAh

n  Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable, 3.8V/8000mAh/30.4Wh.

Adapter

10W

n  DC Output: 5V/2A

n  Automatics Voltage adjustment between 100 and 240VAC

n  Input Frequency 50/60Hz

n  Surge protection

I/O Port

n  1 x DC-in(3.5Ø)

n  1 x USB 2.0 Gen1 Type-A

n  1 x USB 2.0 Gen1 Type-C

n  1 x combo audio jack for headphone/microphone

n  1 x Micro SD card reader

n  1 x Micro SIM slot

n  1 x Micro HDMI

Button

n   Power,VOL+,VOL-­‐ , reset

Power Button

n   On/ Off: Programmable Power Buttons to Android

n   Press power button down for 1 second to enter suspend mode

n   Press power button down for 5 seconds to power off system

Speaker

n   Build-in 2 stereo speakers

n   Speaker: 1W , 8Ω

Microphone

n   Default: 1 mic (One in PCBA)

Camera

n   Front Camera：200M FF-500MFF

n   Rear camera:  500M AF -800AF

n   Mipi interface

n   Resolution support 2M(4:3 format)still image and HD 720P(1280x720，16：9) motion image

OS

n   Android 11 with Google Play Services

Measurements

n  Dimension:266*173*10.6mm

n  Weight:800g (TBC)

Battery Life

n  Battery Life : 10 hour with Tablet Mark 2017 (With SSD SKU)(TBC)

***Base on 10.1” LCD and defined brightness, Wi-Fi on, and camera disabled. Actual battery life may vary based on product settings, usage patterns and environmental conditions.

Certification

EMC

n   FCC/CE

RF

n   CE (Wifi only for Europe，LTE by request)

n   FCC(LTE by request)

Safety&

Environment

n  CB

n  UL

n  WEEE(Declaration)  (TBC)

n  RoHS (Declaration)

Design Ready

n   Energy Star Compliance 8.0  (TBC)

n   Erp 6 (TBC)

n   CEC  (TBC)

Validation

n  Drop test MIL-STD-810G(100cm)

n  IP54
