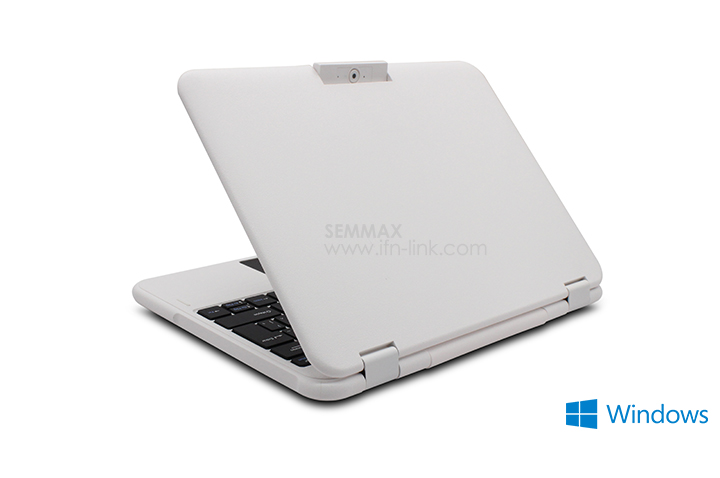

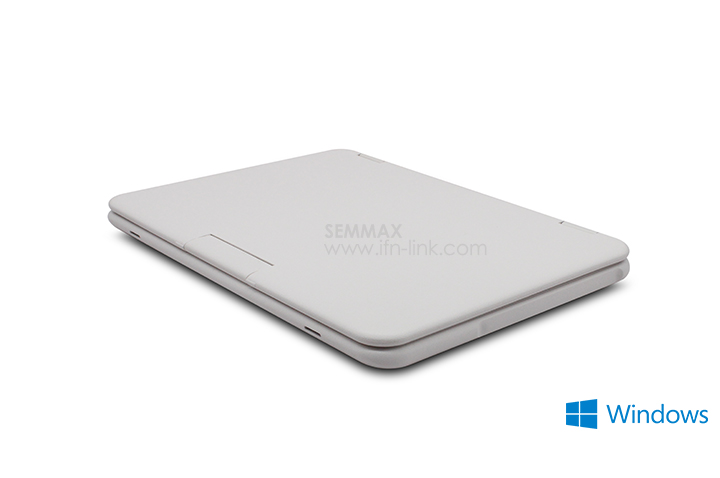

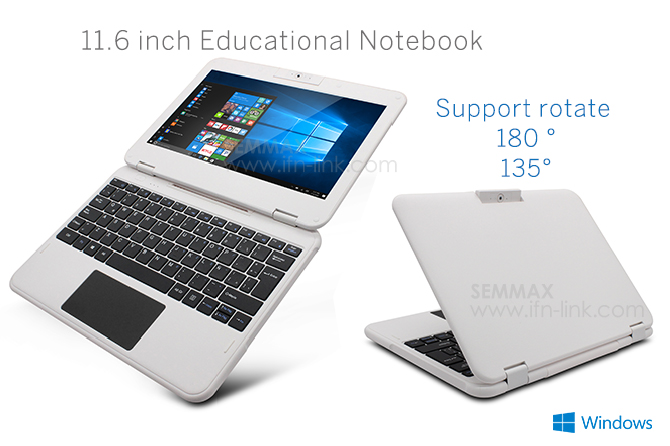

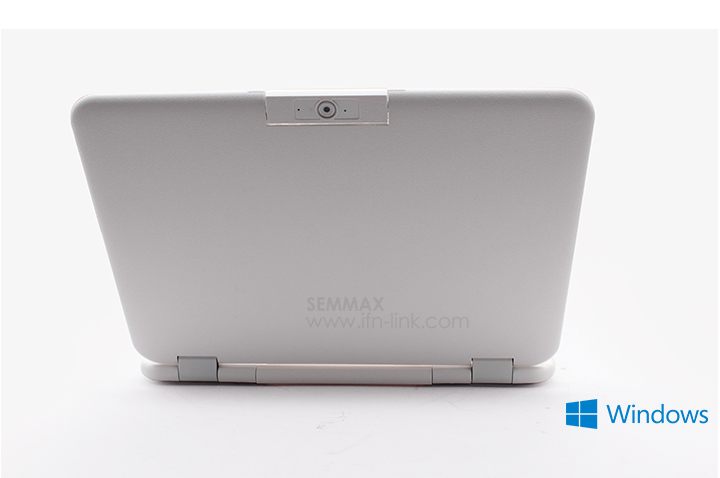

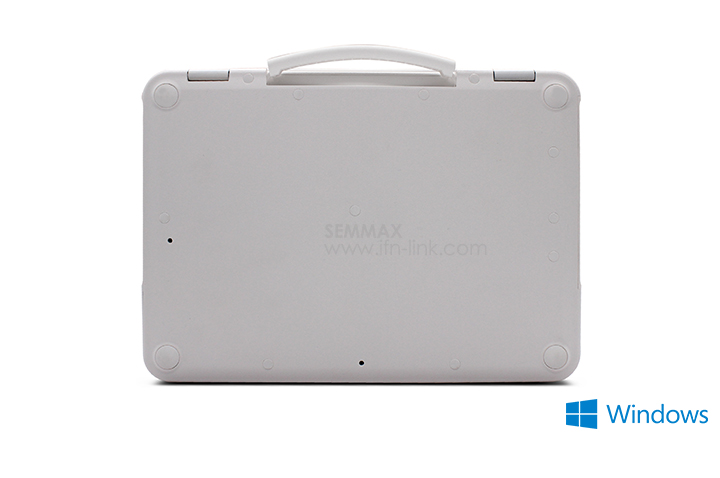

Intel Gemini Lake N4000|11.6 inch 1366x768|4 128GB SSD| 2MP|39.5Wh 7.6V 5200mAh|ac 2X2 | BT 5.0|12V 2A with American head |White
Model: C116EP-G4S-01
CPU:Intel Gemini Lake N4000
LCD:11.6”1366 x 768
RAM:4GB
Memory:128GB SSD
Camera:2MP
Battery:39.5Wh/7.6V 5200mAh
WiFi:ac 2X2
Bluetooth:BT 5.0
Color:White
Keyboard:black
RJ45:N/A
Power Adapter:12V 2A with American head
Features
Tech-Spec
| Hardware Features | ||||||||
| MotherBoard | Main Board | Installed and Version | C116EP-G4S-01 | |||||
| Small board | Installed | NO | ||||||
| Processor | Installed | Intel Gemini Lake N4000 | ||||||
| Technology (nm) | 14nm | No of Cores：Dual Core | ||||||
| Frequency (Mhz or Ghz) | 1.1Ghz-----2.6Ghz | |||||||
| Package | FCBGA1090 | |||||||
| TDP | 6W | |||||||
| Graphic | GPU | Intel® UHD Graphics600 | ||||||
| Package | integrate | |||||||
| Max TDP support | integrate | |||||||
| VRAM | 128MB | |||||||
| Video Board | ||||||||
| Memory | Installed Type | LPDDR4 on board | Size: 10*14.5*1.0mm | |||||
| Socket type & number | 200B*4 | |||||||
| Frequency | 2400Mhz | |||||||
| Max memory support | 4GB | |||||||
| Other | Expansion Lots | Support M.2 SATA SSD | ||||||
| Raid Support | ||||||||
| Storage | Installed | 32GB EMMC | ||||||
| Socket type, qtt, interface | On brod | |||||||
| Max storage support | Support up to maxium 128GB (Optional) | |||||||
| Display | Size | Resolution: 11.6 | ||||||
| Aspect | DPI 1366*768 | |||||||
| Panel type | IPS | |||||||
| Display (LCD) IC | ||||||||
| Other features (touch, active pen) | ||||||||
| Multi-Touch (Real) | ||||||||
| Multi-Touch (SW) | ||||||||
| TP Type | TP IC | |||||||
| Audio | Speaker Model | Realtek ALC269 | ||||||
| Speaker Power | OHM:BOX 8Ω1W*2 | |||||||
| Microphone model | 3.5 combo Audio jack for microphone/headphone | |||||||
| Keyboard | Type | chocolate keyboard | ||||||
| Number of Keys | 79 | |||||||
| Features (backlite, spillresist) | NO | |||||||
| KeyPad | Support (Optional) | |||||||
| Touch pad | HID I2C | |||||||
| Pointing Device | Follow AVL | |||||||

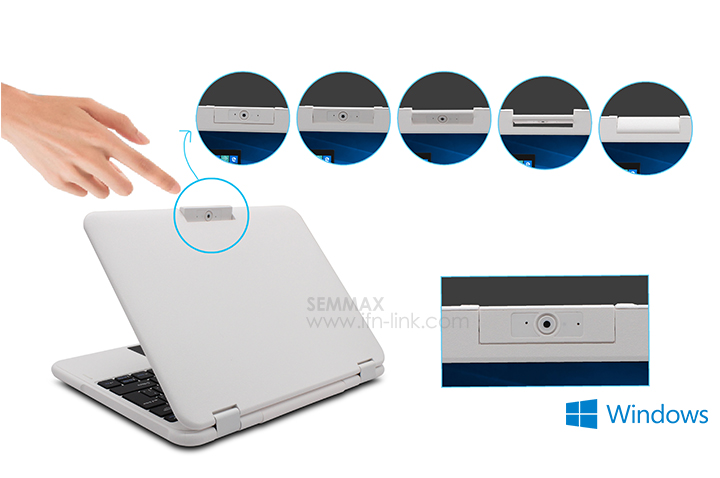

| Camera | Front - Resolution | IC： GC2385 camera processor CPU：SPCA2093B |
||||||
| Back - Resolution | ||||||||
| Front- Video Output | Video Output | |||||||
| Flash Type | Work indicator | |||||||
| AC Adapter | Power | Input | 100-240V ~50/60Hz 0.8A | |||||
| Output | 12V---2.0A | |||||||
| Input plug Type | Wall plug, 2 prong Brazilian gauge | |||||||
| Output cable Typen | No.22，1.5M | |||||||
| DC connector diameter | external 3.5mm/ internal 1.5mm | |||||||
| Output (V / A) | 12V---2.0A | |||||||
| PINs Material | external aluminum/ internal copper | |||||||
| Power efficiency | Capacity | |||||||
| Battery Type | Battery Type | Polymer lithium ion battery | ||||||
| Cell Type and number | Polymer cell 2S1P | |||||||
| Capacity | 5200mAh | |||||||
| Standby time (Hours) | ||||||||
| Windows bootup(Hours) | Battery Life(Battery:5200mAh): 8 hours with Tablet Mark 2017 | |||||||
| Music/Video player (Hours) | Battery Life(Battery:5200mAh): 8 hours with Tablet Mark 2017 | |||||||
| Others | ||||||||
| LEDs indicator | Power indicator | yes | ||||||
| Charging & Battery indicator | Charge status (green/Red) | |||||||
| WiFi indicator | NO | |||||||
| Others Led | 1.The first lamp on the left side of C case is the switch indicator lamp 2.The second lamp on the left side of the C case is the capitalization indicator. 3.The third light on the left side of C case is Touch pad lock |
|||||||
| Mechanical Feature | ||||||||
| System Specification | Physical Outline | Dimension | 294*213*21mm | |||||
| Weight with battery | 1180g | |||||||
| I/O | USB ports and version | USB type-A 3.0*2 | ||||||
| USB type-C ports and version | USB Type C 3.0*1 port (only data) | |||||||
| HDMI | type-A 1.4 | |||||||
| Video ports | HDMI OUTPUT | |||||||
| Card reader | YES Micro SD Card Reader | |||||||
| RJ45 port | NO | |||||||
| Audio out / Mic in / Combo | YES 3.5 combo Audio jack for microphone/headphone | |||||||
| DC-in connector | external diameter 3.5mm/ internal diameter 1.5mm | |||||||
| Kensington lock | Standard 3*7mm | |||||||
| Serial port | NO | |||||||
| Fingerprint | NO | |||||||
| ODD | NO | |||||||
| Other | NO | |||||||
| Passive / Active pen | NO | |||||||
| Design / Finishing | A Cover Color / material | plastic | ||||||
| B Cover Color / material | plastic | |||||||
| C Cover Color / material | plastic | |||||||
| D Cover Color / material | plastic | |||||||
| Others | ||||||||
| Others | Buttons | Power Buttons | ||||||
| TV | NO | |||||||
| TV OUT | NO | |||||||
| Light-sensor | NO | |||||||
| Proxy-sensor | NO | |||||||
| G-sensor | NO | |||||||
| Gyro | NO | |||||||
| Fingerprint | NO | |||||||
| Fingerprint Sensor Type | NO | |||||||
| E-compass | NO | |||||||
| Barometer | NO | |||||||
| NFC Compatible | NO | |||||||
| Fast Charge | NO | |||||||
| Ports | 1 x DC-in(3.5Ø); 2 x USB 3.0 port (Type A); 1 x USB Type C 3.0 port (only data ); 1x HDMI（Standard）1x Micro SD Card Reader 1 x combo Audio jack for microphone/headphone |
|||||||
| Side key | NO | |||||||
| RF antenna | WiFi/BT | |||||||
| TV antenna | NO | |||||||
| Standard audio jack | 3.5MM combo Audio jack for microphone/headphone | |||||||
| Electroacoustic parts | Realtek ALC269 | |||||||
| Trackpad | HID I2C | |||||||
| Stylus | ||||||||
| Others | ||||||||
