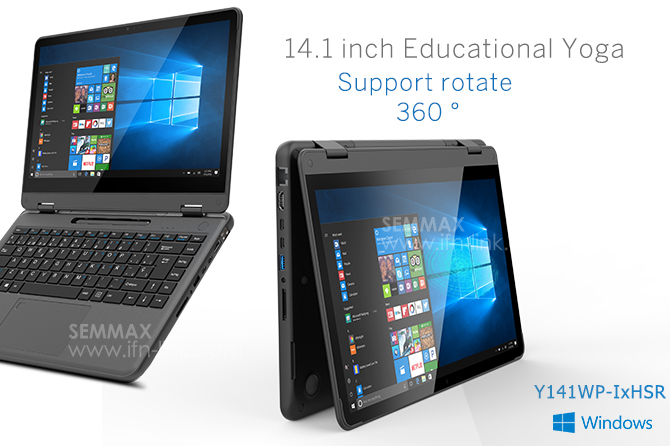

14.1 inch Education YOGA

Model: Y141WP-IxHSR

14.1 inch Education YOGA



Ice Lake / Tiger lake| 14.1”| SODIMM DDR4| SSD/HDD | 2M Camera | LTE |RJ45 |



ADP 65W | Stylus | Battery Life : 8 12 hour with Tablet Mark 2017 (With SSD SKU)(TBC)



343.4*234*22.3mm |2.2kg (TBC)|




Features

 14.1 inch Education YOGA

Y141WP-IxHSR





Tech-Spec

14.1 inch Education YOGA



Ice Lake / Tiger lake| 14.1”| SODIMM DDR4| SSD/HDD | 2M Camera | LTE |RJ45 |



ADP 65W | Stylus | Battery Life : 8 12 hour with Tablet Mark 2017 (With SSD SKU)(TBC)



343.4*234*22.3mm |2.2kg (TBC)|

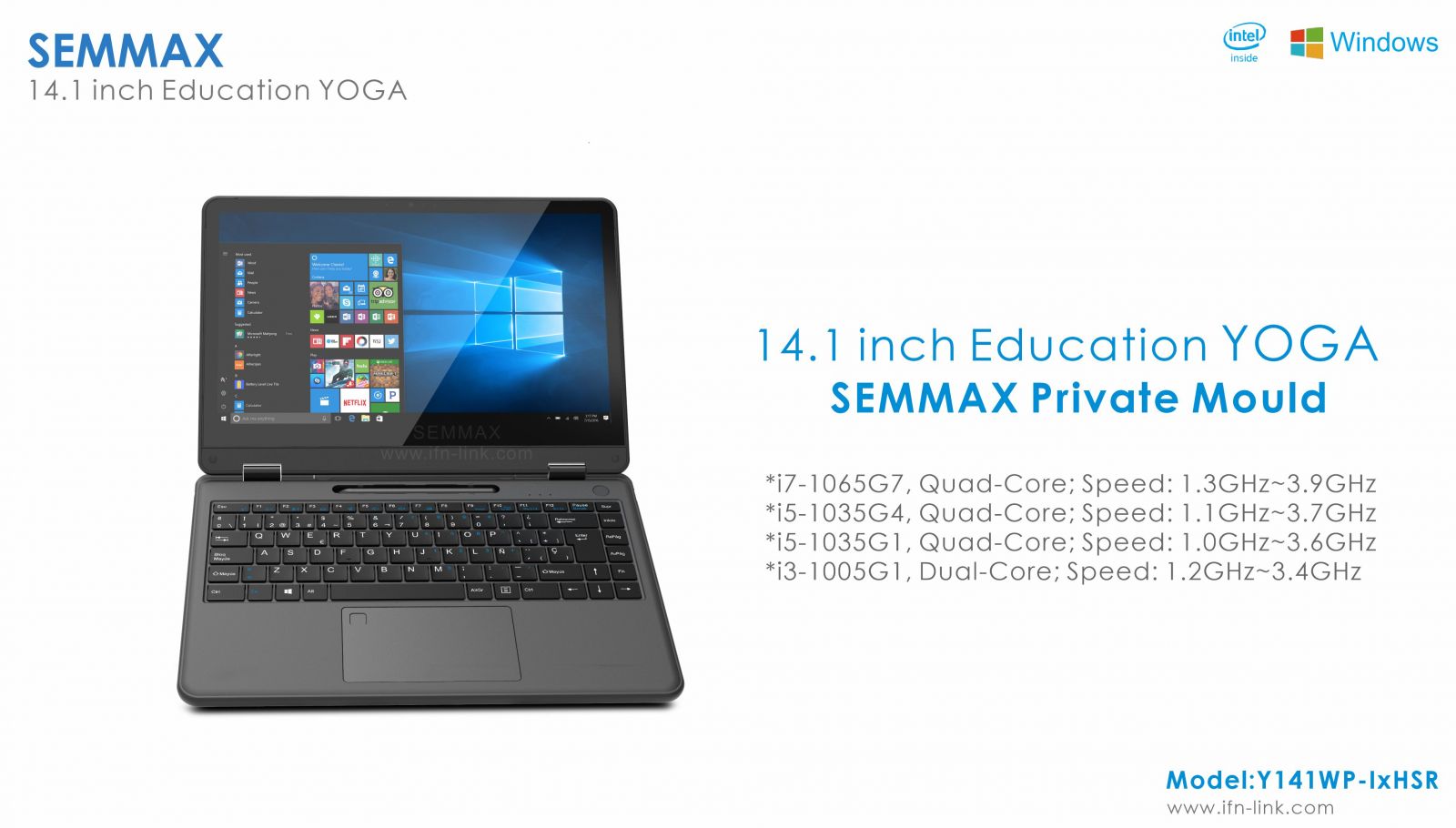

SOC

Intel Ice Lake

n   i7-1065G7, Quad-Core; Speed: 1.3GHz~3.9GHz

n   i5-1035G4, Quad-Core; Speed: 1.1GHz~3.7GHz

n   i5-1035G1, Quad-Core; Speed: 1.0GHz~3.6GHz

n   i3-1005G1, Dual-Core; Speed: 1.2GHz~3.4GHz

Memory

DDR4 Sodimm* 2

n   Sodimm DDR4 Speed 2400-3200MZH

n   Support 4GB-32GB

Storage

SSD
<Optional>

n   Support  SSD 128-1TB

n   Support SATA or PCIE (M.2 2280)

HDD
<Optional>

n   Support  DHH 512-1TB

Ø  Support SATA 2.5inch

Audio Codec

Realtek

ALC269Q-VX3-GR

n   Azalia integrated audio

n   2.1 channels sound outputs support

LAN Controller

<Optional>

Realtek

RTL8111HS-CG

n   Supports 10/100/1000 Mb/Sec

KBC

ITE

IT8987E/BX

n   ACPI 2.0b compliant

SD Card reader

Realtek

RTS5170-GR

n   SD, SDXC, SDHC

n   USB2.0 interface

Hall Sensor

WH251E-3/TR

n   Micropower operation

n   Operation with magnetic field of either north or south pole

n   Chopper stabilized

n   Superior temperature stability

LCD

14.1 IPS

n   14.1” IPS 1920 x 1080

n   Brightness 250nitscontrastratio800(typ)

n   eDP interface

Keyboard



n   Integrated QWERTY keyboard w/ Hot key

n   83 UK KEY K/B

n   Multi-languages Supported

n   Physical Chocolate KB

Pointing Device

HIDI2C

n   Click Pad with Left / Right Click and scrolling Bar.

n   I2C interface

n   Support Windows Precision Touchpad (PTP)

Touch Controller

Goodix

GT7387P/GT7387

n   Mutual Capacitive Sensing Techniques

n   UP to 10 finger detection and simultaneous tracking

n   Windows 10 desktop certified touch solutions

n   Up to 100Hz report rate

n   Sensor size up to 10 inch diagonal

Touch screen

G+FF

n   Support 10-points multi-touch, G+FF type

n   Capacitive multi-touch

n   I2C Interface

n   Support palm rejection

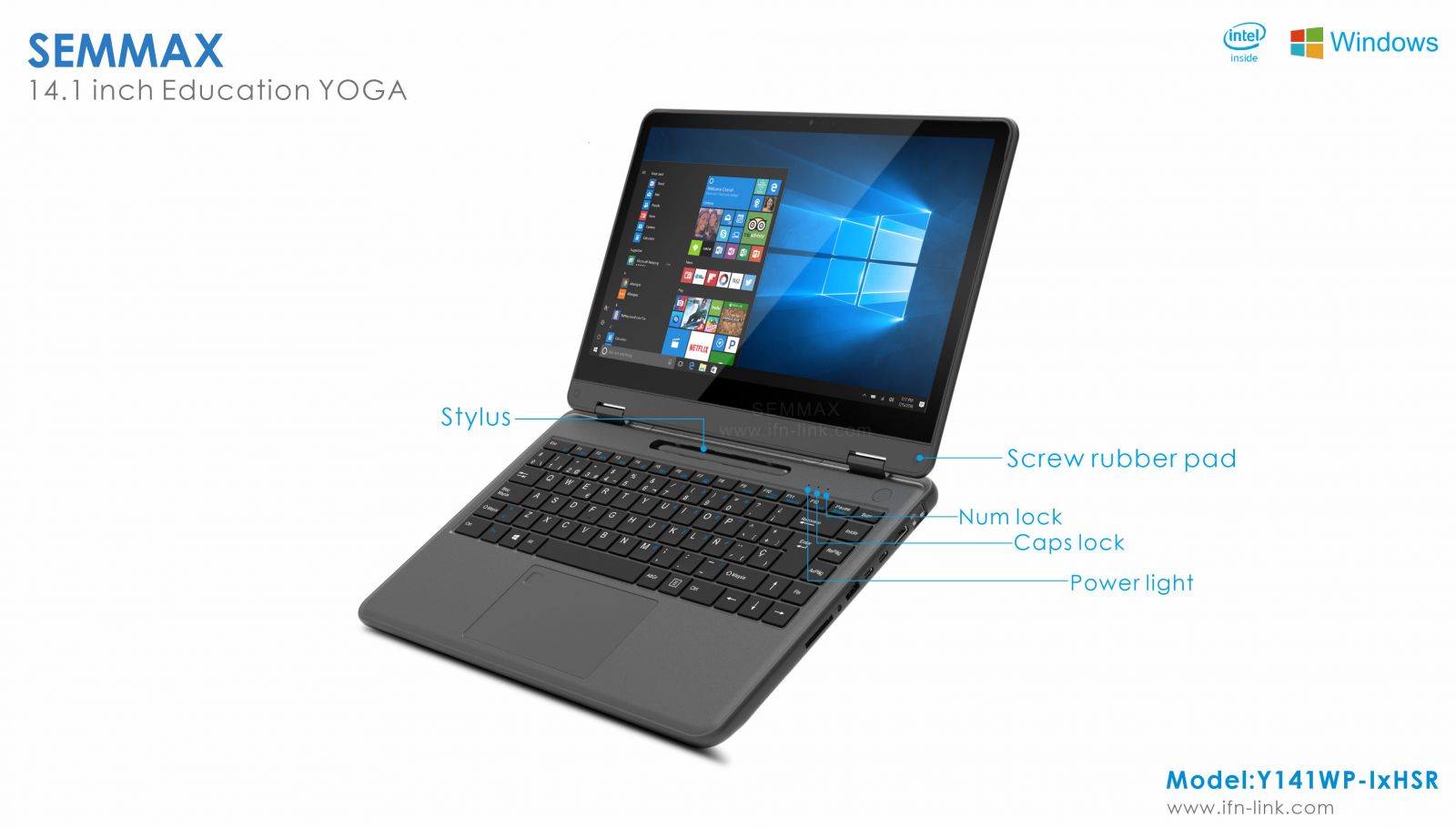

Active Stylus

ME-MPP413B

n   Stylus ME-MPP413B

n   support MPP 1.51

Wireless LAN /  Bluetooth

1x1ac Combo

AC9461

n   802.11ac 1x1 (5GHz/2.4GHz dual band support)

n   Bluetooth 5.1

n   M.2 2230 supported

2x2ac Combo

AC9560

<Optional>

n   802.11ac, 2x2 (5GHz/2.4GHz dual band support)

n   Bluetooth 5.1

n   M.2 2230 supported

2x2ac Combo

AX200/ AX201

<Optional>

n   802.11ac, 2x2 (5GHz/2.4GHz dual band support) ,WiFi 6

n   Bluetooth 5.1

n   M.2 2230 supported

Accelerometer

(G-sensor)<default in Yoga type>

BOSCH

BMA253

n   Accelerometer and gyroscope combine

n   Display profile switching (portrait/landscape, face-up/face-down switching)

n   Flat detection

n   I²C, 2x digital interrupt pins

Accelerometer

Gyroscope

<Optional in Yoga type>

BOSCH

BMI160

n   Accelerometer and gyroscope combine

n   Display profile switching (portrait/landscape, face-up/face-down switching)

n   Flat detection

n   I²C, 2x digital interrupt pins

ALS

(Ambient Light-Sensor)

<Optional>

Capella

CM32181A3OP

n   LCD backlight luminance auto adjustment

n   Standard SM Bus protocol interface

e-Compass

<Optional>

BOSCH

BMM150

n   Geomagnetic combination

n   Compensated compass

n   Map rotation

n   I2C serial interface

LTE
<Optional>

M.2 USB/PCIE

n   LTE FDD: Band 1,3,7,8,20,28,

n   WCDMA/HSPA+: Band I, V, VIII

n   M.2 Key-B, 30 x 42 x 2.3mm

n   USB 2.0 interface

n   Data Service Up to 300Mbps DL/50Mbps UL

n   Supports AGPS

Battery

Polymer

n  Polymer 3 cell 3S1P 4500mAh

n  Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable, 3s1p/11.4V/51.3Wh.( Support HDD)

n  Polymer 3 cell 3S1P 6500mAh

n  Li-Polymer Battery, SW Gas Gauge IC,soft pack,non-removable, 3s1p/11.4V/74.1Wh.(NO HDD)

Adapter

65W

n  DC Output: 19V/3.42A

n  DC in plug

n  Automatics Voltage adjustment between 100 and 240VAC

n  Input Frequency 50/60Hz

n  Surge protection

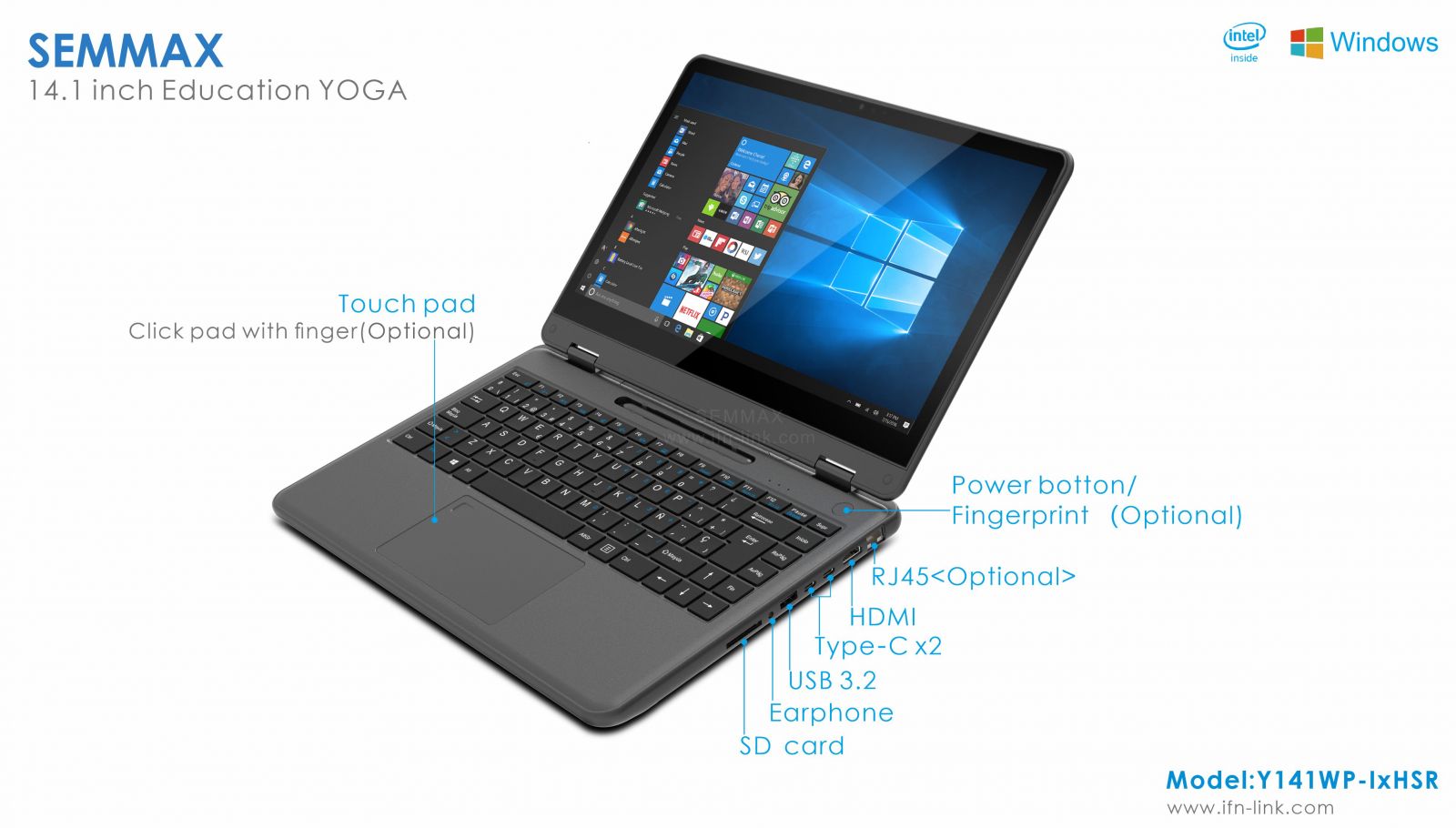

I/O Port

n  1 x DC-in(5.5Ø)

n  2 x USB 3.2 Gen1 Type-A

n  2 x USB 3.2 Gen2 Type-C (USB3.2, Data/PD/DP)

n  1 x combo audio jack for headphone/microphone

n  1 x HDMI Type-A 2.0

n  1 x SD card reader

n  1 x Micro SIM slot <Optional>

n  1 x RJ45 <Optional>

System Status

Indication

n  When power on: White LED always on, caps lock White LEDdigital White LED

n  Power charging indicator LED (Full: Green / Charging: Red)

n  Low battery (<20%): Red, blink every one second.

n  LAN Link:10M Off / 100M Green / 1000M Orange / Act: Green

Power Button

n   On/ Off: Programmable Power Buttons to Windows

n   Press power button down for 1 second to enter suspend mode

n   Press power button down for 4 seconds to power off system

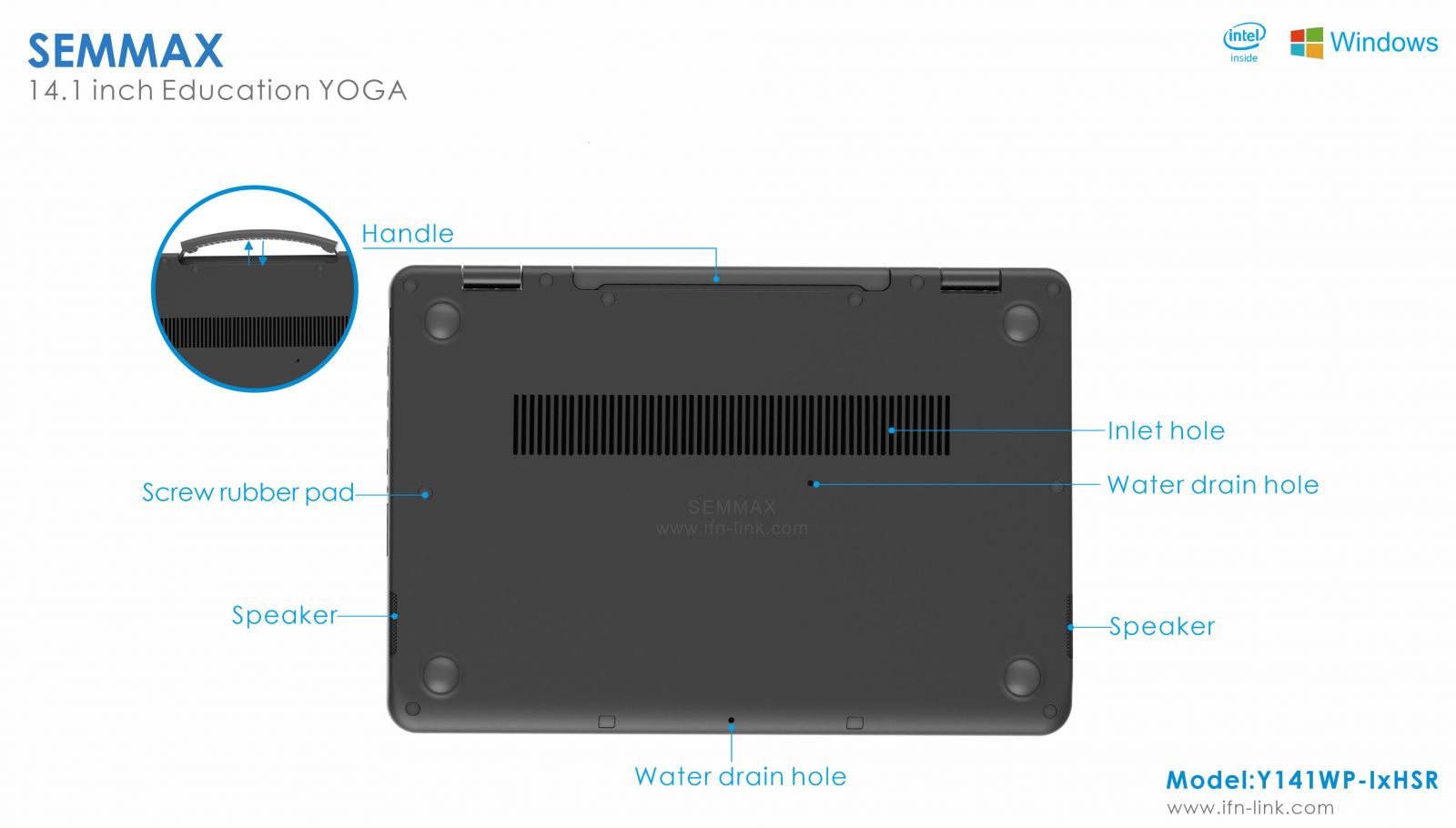

Speaker

n   Build-in 2 stereo speakers

n   Speaker: 2W , 4Ω

Microphone

n   Default: 2 digital mic

n   Support Windows 10 Cortana compliance.

n   Digital MIC array

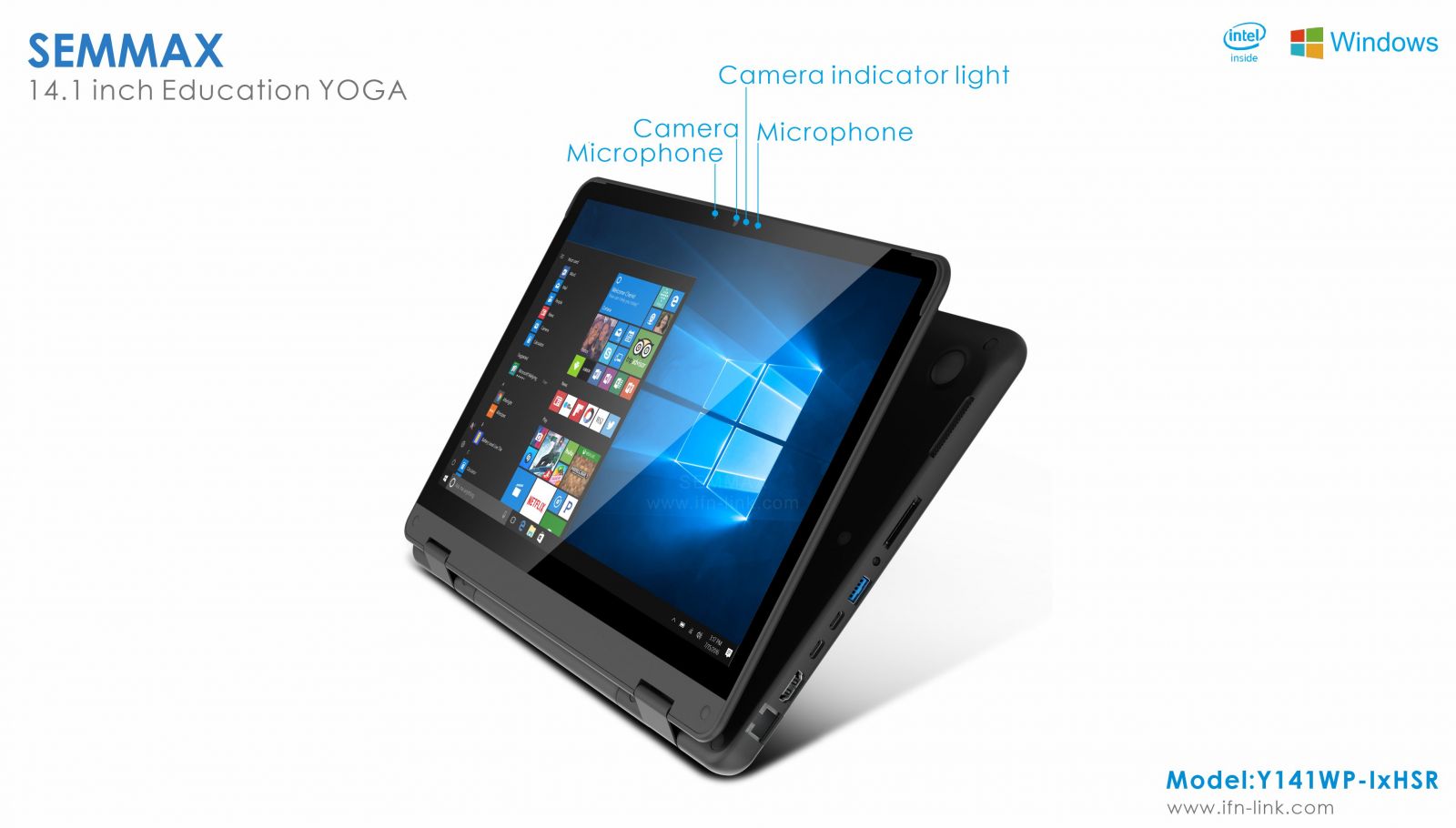

Camera

n   Front Camera2M FF W/Blue LED

n   With D-MIC*2

n   USB 2.0 interface

n   Resolution support 2M(4:3 format)still image and HD 720P(1280x720169) motion image

OS

n   Windows 10 (64bit)

n   WHLK LOGO

System BIOS

AMI

n   Support ACPI 5.0

n   Support external USB flash memory card boot up.

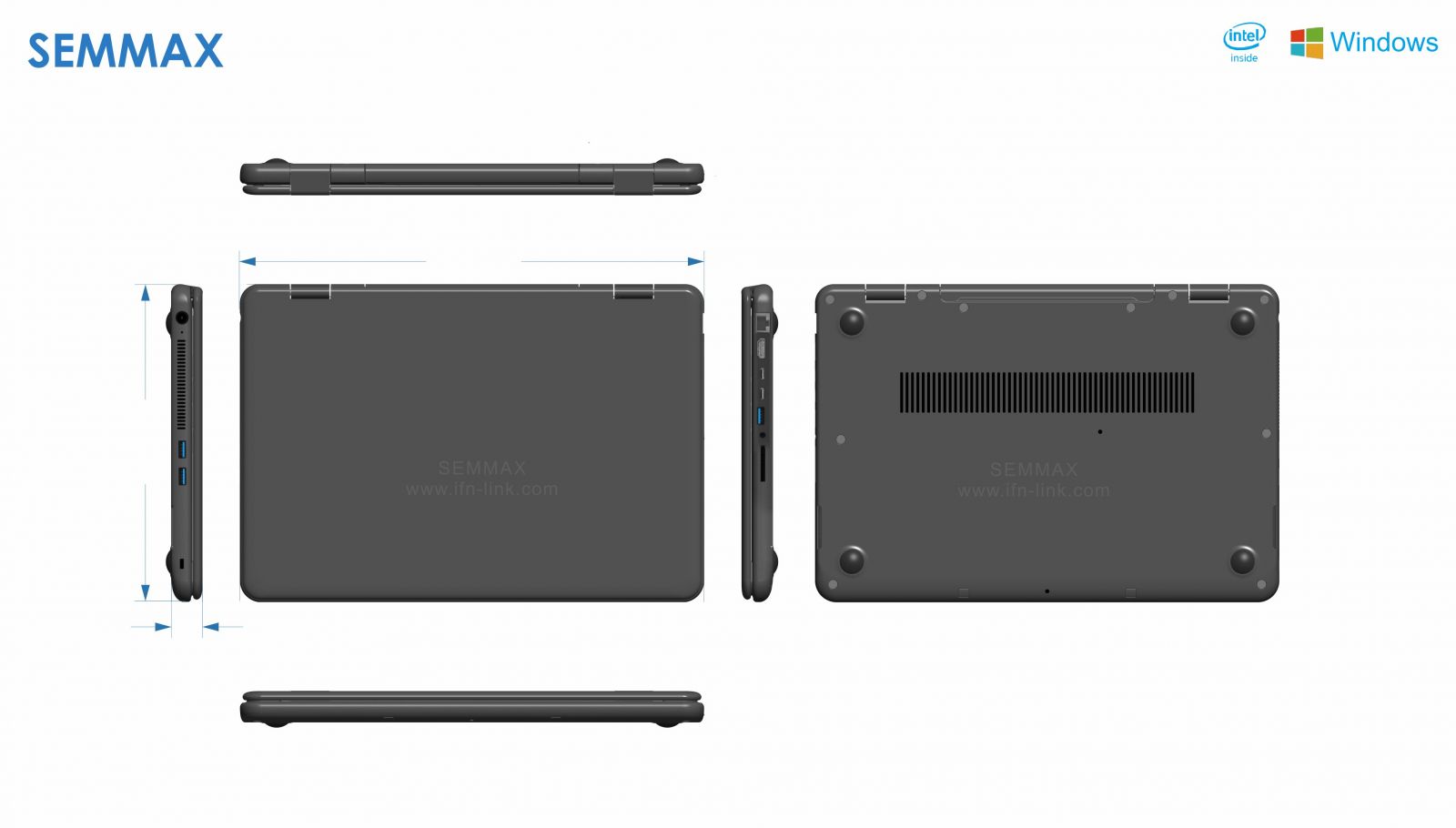

Measurements

n  Dimension:343.4*234*22.3mm

n  Weight:2.2kg (TBC)

Battery Life

n  Battery Life : 8-12 hour with Tablet Mark 2017 (With SSD SKU)(TBC)

***Base on 14.1” LCD and defined brightness, Wi-Fi on, and camera disabled. Actual battery life may vary based on product settings, usage patterns and environmental conditions.

Certification

EMC

n   FCC/CE

RF

n   CE (Wifi only for EuropeLTE by request)

n   FCC(LTE by request)

Safety&

Environment

n   CB

n   UL (by request)

n   WEEE(Declaration)

n   RoHS (Declaration)

Design Ready

n   Energy Star Compliance 8.0

n   Erp 6

n   CEC

Validation

dTPM2.0

SLB 9670

<Optional>

n   Meeting IntelTXT, Microsoft Windows and Google Chromebook certification criteria for successful platform qualification

n   SPI interface

Validation

n   Water repellent on C cover 500CC, including Keyboard and touch pad

n   Dropping 100cm, MIL-STS-810G

Fingerprint

<Optional>

n   Touch pad

n   SPI interface

n   Windows Hello supported

iKES
<Optional>

n   Education Software (not support in Win10 S mode)
