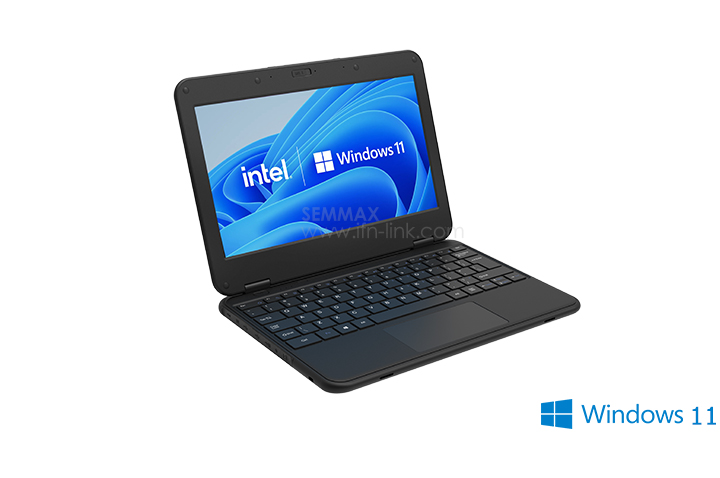

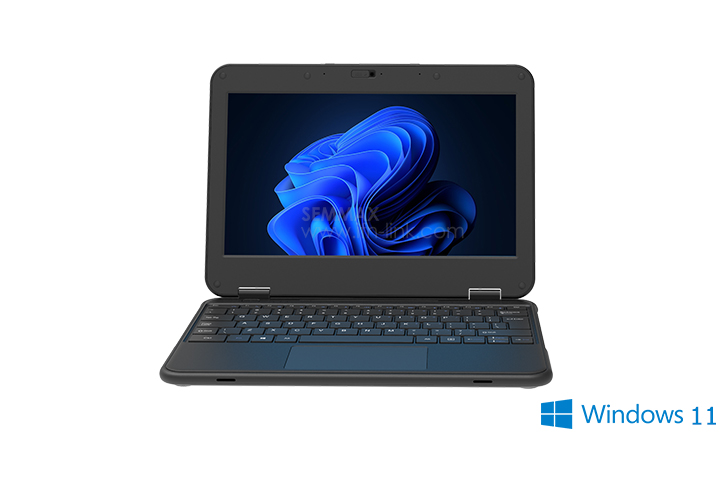

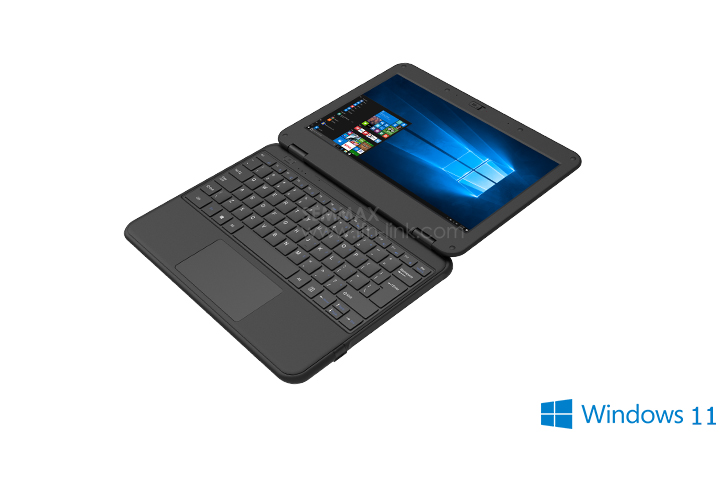

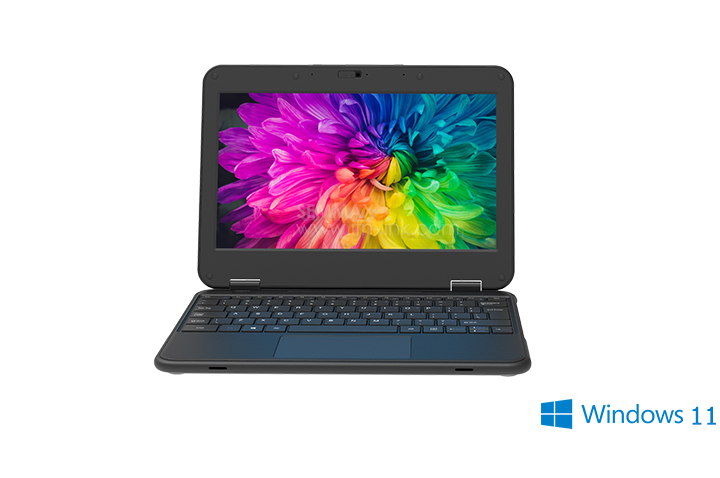

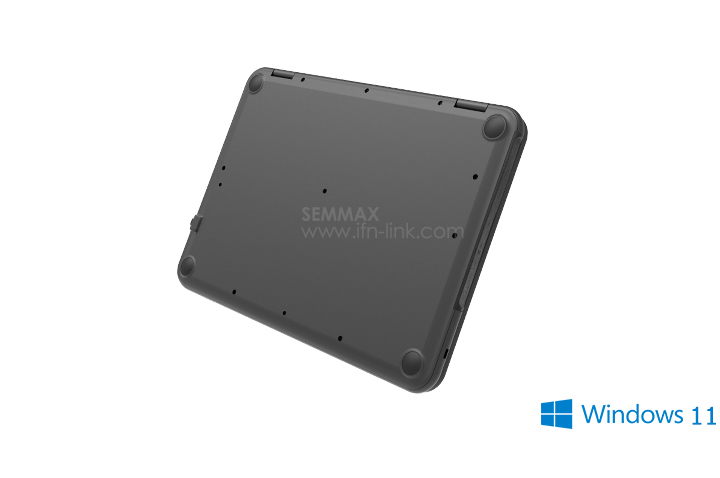

11.6 inch Education Notebook|For teachers/for students
Model: C116EP
OS：Windows 11
CPU：N4500
LCD：11.6" 1366*768
RAM：8GB 2933MHz
Memory：128GB eMMC
Camera：2MP
Battery：5200mAh 7.6V
Wi-Fi：AX200
Bluetooth：5.2
Keyboard：English
Power：12V/2A
Features
Tech-Spec
| CPU | Intel Jasper Lake | ● Intel ® Celeron ® N Series processors:N4500 Intel ® Supercore graphics card, Frequency up to 800MHz |
|||
| Memory | LPDDR4 | ● LPDDR4 speed up to 2400MHz ● Support 4GB（dual channel） (Optional) ● 8GB |
|||
| Storage | EMMC(optional) M.2 SSD(optional) |
● Support 64G EMMC v5.1 ● EMMC Controller ● 128GB |
|||
| Card reader | ● Micro SD socket | ||||
| LCD | ● 11.6”IPS 2.6mm 1366 x 768 contrast 300：1( w/0 Touch) | ||||
| Battery | ● Polymer 2 cell 2S1P 5200mAh ◆39.52WH, 7.6V |
||||
| Wifi & Bluetooth | 1x1ac Combo | ● 802.11ac 1x1 (5GHz/2.4GHz dual band support) ● Bluetooth 5.1 ● 1216 supported |
|||
| 2x2ac Combo | ● 802.11ac 2x2 (5GHz/2.4GHz dual band support) ● Bluetooth 5.1 ● 1216 supported ● AX200 |
||||
| Touch Pad | ● Click Pad with Left / Right Click ● HID I2C interface support precision touchpad |
||||
| Camera | ● USB 2.0 interface ● 2MP, w/1 flash LED ● Camera support rollback 180 degrees |
||||
| Speaker | ● Build-in 2 speakers ● Speaker: 1W x2； 8 Ω；Box |
||||
| BIOS | ● BIOS to AMI ● Support ACPI 5.0 |
||||
| OS | ● Windows 11 (64bit) ● WHLK LOGO |
||||
| I/O Port | ● 1 x DC-in(3.5Ø) ● 2 x USB 3.0 port (Type A) ● 1 x USB Type C 3.0 port (only data or full function ) ● 1x HDMI（Standard） ● 1x Micro SD Card Reader ● 1XRJ45 (Optional)（ ● 1 x combo Audio jack for microphone/headphone |
||||
| System Status Indication |
● Charge status (Blue/Red) ◆ Battery charge(incomplete): red light is long and bright ◆ Battery Charge ( FULL) : LED Blue Light ◆ Battery not Charge：LED is not bright ● The first light on the left side of C case is the switch indicator ● The second light on the left side of the C case is the capitalization indicator. ● The third light on the left side of C case is the indicator of touch pad lock. ● LED Indicators: 4 |
||||
| Power Button | ● On/ Off: Programmable Power Buttons to Windows ● Press power button down for 1 second to enter suspend mode ● Press power button down for 5 seconds to power off system ● Fingerprint support (Optional) |
||||
| Keyboard Function Key | ● Fn + Esc： Homepage ● Fn + F1： Find ● Fn + F2： All election ● Fn + F3： Copy ● Fn + F4： Paste ● Fn + F5： Cut ● Fn + F6： Last song ● Fn + F7： Suspend ● Fn + F8： Next song ● Fn + F9： Mute ● Fn + F10： Volume Down ● Fn + F11：Volume Up ● Fn + F12：Function lock ● Fn + F11：Numeric keylock |
||||
| Keyboard | ● Multi-languages Supported ● Chocolate UK |
||||
| AC-Adapter | ● DC 3.5Ø ● 12V2A ● Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 24Watts |
||||
| lock hole | ● standard Kensington lock hole （3*7MM） | ||||
| TPM | dTPM2.0/fTPM2.0 | ||||
| Language | ● Chinese ● English ● Spanish ● Portuguese ● French ● German ● Russian ● Arabic ● Brazil Portuguese ● Latin Spanish ● Italian ● Hungarian ● Turkish |
||||
| Measurements | ● Dimension: 294x213x22 mm For RJ45（not including rubber foot pad） ● Weight: 1180g（5200mAh） |
||||
| Battery Life | ● Battery Charger time：4hrs (Power off) ● Battery Life(Battery:5200mAh): 8 hours with Tablet Mark 2017 ◆ Base on 6W (TDP) CPU, 11.6” LCD and default brightness（40%）,Wi-Fi on, and camera disabled |
||||
| Certification | EMC | ● CE ● FCC |
|||
| RF | ● FCC | ||||
| Safety& Environment |
● CB ● ROHS |
||||
| Validation | ● Drop test MIL-STD-810G (100cm) ● water repellent 500cc on Keyboard/touchpad ● IP52 ● high and low temperature ● vibration ● Energy Star (Design ready) |
||||
